Dimensional Drawings for Wheel Chocks

Sat Jun 01, 2019 2:51 pm

Anyone have or know of a source for dimensional drawings for aircraft wheel chocks? I assume there would be different sizes of chocks for different sized aircraft. I'm also assuming the Air Force would specify a particular dimension for their chocks.
Cvairwerks
  • Cvairwerks
  • Posts: 1469
  • Joined: Mon Jun 14, 2004 8:41 pm
  • Location: North Texas

Re: Dimensional Drawings for Wheel Chocks

Sun Jun 02, 2019 9:15 am

This gives you most of the dimensions: MIL-PRF-32058

The profile drawing is: 42D6594 Chock Assembly-Wheel, Adjustable Rope Type

Angle on the faces should be 45 degrees. Sample dims here: https://www.google.com/search?biw=1533& ... AP69Q3AcAM:
bdk
  • bdk
  • Posts: 11324
  • Joined: Sun May 02, 2004 1:16 am

Re: Dimensional Drawings for Wheel Chocks

Mon Jun 10, 2019 12:46 pm

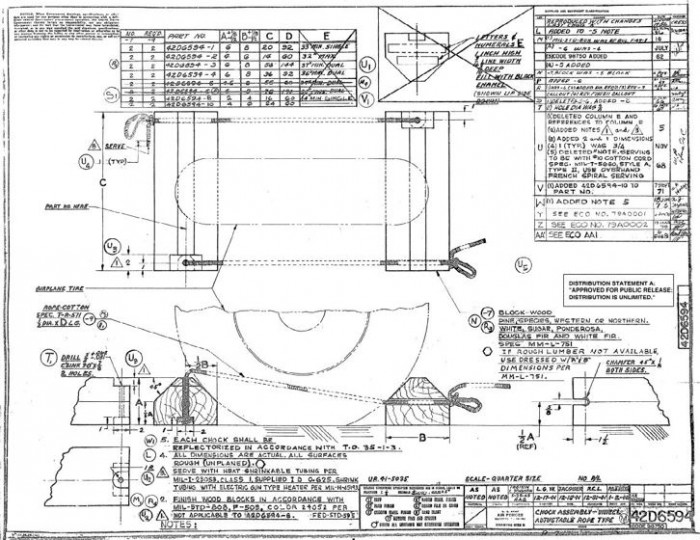

42D6594 Wheel Chock Drawing
Attachments
42D6594 Wheel Chock 4.jpg
42D6594 Wheel Chock Drawing
carseneau
  • carseneau
  • Posts: 82
  • Joined: Tue Jan 18, 2005 2:00 pm
  • Location: Tucson, AZ

Re: Dimensional Drawings for Wheel Chocks

Mon Jun 10, 2019 3:44 pm

Thank you guys.
