PV-1 black squares on the wings
Wed Nov 21, 2018 9:22 am
What are the black squares on the PV-1 wings?
- Attachments
-
-
Re: PV-1 black squares on the wings
Wed Nov 21, 2018 11:43 am
At those locations are aerodynamic slots in the wing that keep the wing tips from stalling before the rest of the wing.
As to the dark (black) coloring, I don't know, but it seems possible that the slots are protected from icing with pneumatic boots just like the leading edges of the wings and tail.
C2j
As to the dark (black) coloring, I don't know, but it seems possible that the slots are protected from icing with pneumatic boots just like the leading edges of the wings and tail.
C2j
Re: PV-1 black squares on the wings
Wed Nov 21, 2018 11:44 am
I wonder if it's just a different color paint where the slots are located?
Re: PV-1 black squares on the wings
Wed Nov 21, 2018 7:59 pm
Mike,

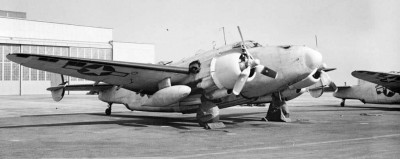

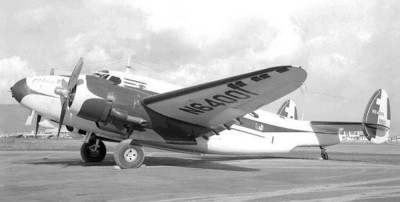

Looking at the two photos you posted above, I am more convinced it is de-icing boots. The top picture shows a wing with no de-icers and the bottom picture shows a wing with de-icers.
C2j
Looking at the two photos you posted above, I am more convinced it is de-icing boots. The top picture shows a wing with no de-icers and the bottom picture shows a wing with de-icers.
C2j
