Aviation Museum Blueprints, Concept Art, and Renderings

[Noha307]

The Liberty Aviation Museum will be soon beginning construction on a third, 12,000 square foot hangar:

Liberty Aviation Museum

• Exterior

(Source: Sandusky Register)

As part of the "Maximum Effort" capital campaign, the Airman’s Fate exhibit at the National Museum of the Mighty Eighth Air Force will be expanded with the inclusion of an original German boxcar of the type used to transport American prisoners of war during World War II:

National Museum of the Mighty Eighth Air Force

• Interior 1
• Interior 2

(Source: Vintage Aviation News)

[Noha307]

The Air Force Heritage Park in Summerside, Prince Edward Island has an old site plan on their website:

Air Force Heritage Park

• Site Plan

(Source: Air Force Heritage Park, PEI)

The National Museum of World War II Aviation, which was mentioned in a previous post, had a groundbreaking on a 40,000 square foot expansion to the Kaija Raven Shook Aeronautical Pavilion on 13 August 2025:

National Museum of World War II Aviation

• Rendering

(Source: National Museum of World War II Aviation)

The Musée de l’Air et de l’Espace, or French Air and Space Museum, has had a large collection of aircraft held in reserve on the west side of Paris-Le Bourget Airport. Just like its American equivalent, Silver Hill, it has suffered the same problem of inadequate storage, forcing the aircraft to be kept in drafty hangars or even parked outside. However, the museum has been working to address this and, as noted in their 2024 annual report, completed a new, climate controlled 3,000 square meter (~32,000 square foot) hangar at at the south end of the site:

Musée de l’Air et de l’Espace

• Rendering

(Source: Atom Graphic)

This is not the first step in the process either. The museum had built another new 3,000 square meter storage facility in late 2020 on the northern side of the facility.[1]

[Noha307]

A pair of renderings for the Omaka Aviation Heritage Centre and an older unrealized design:

Omaka Aviation Heritage Centre

• Exterior

(Source: Scoop)

(Source: Marlborough District Council)

(Source: Marlborough District Council)

[Noha307]

The Oregon Aviation Historical Society & Museum, back when it was still just called the Oregon Aviation Museum, had a very ambitious plan for a museum. The design by Gary Moye was to include four hangar galleries, a circulation gallery and an exhibit court, among other features:

Oregon Aviation Museum

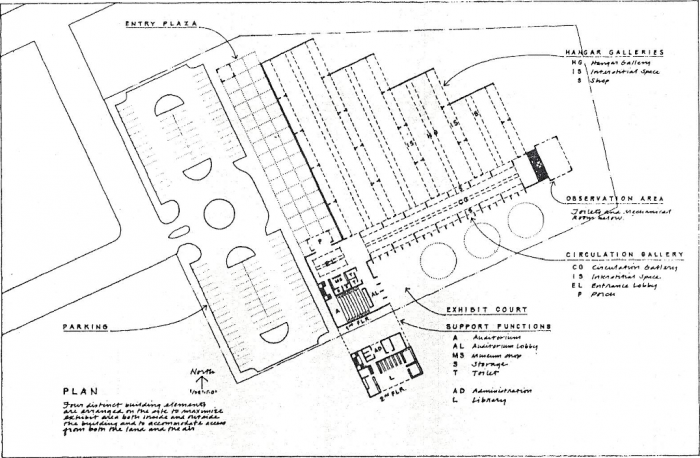

The group of four hangar elements can be built in stages. Modules of
each hangar, the second floor of the support building, the entry plaza,
restoration shops and the observation area are all designed for phased
development scheduled as finances permit.

Site Planning.png (144.06 KiB) Viewed 188 times

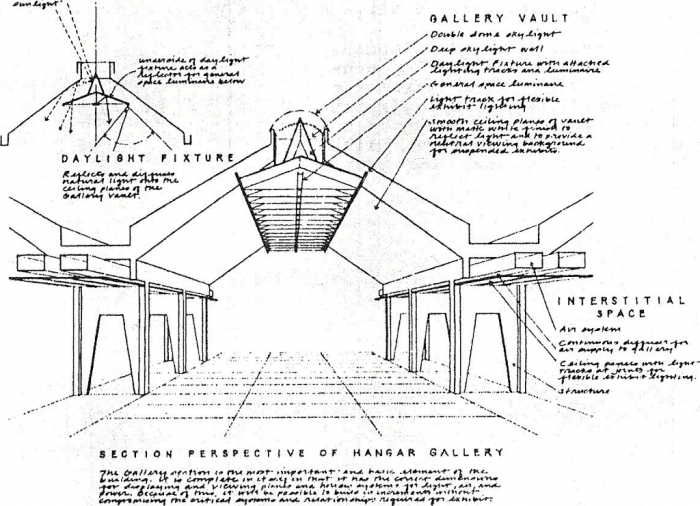

Each vaulted hangar gallery is scaled for both large and small
exhibits, contains heating and ventilating ducts, and yet it is
designed for modular phased construction.

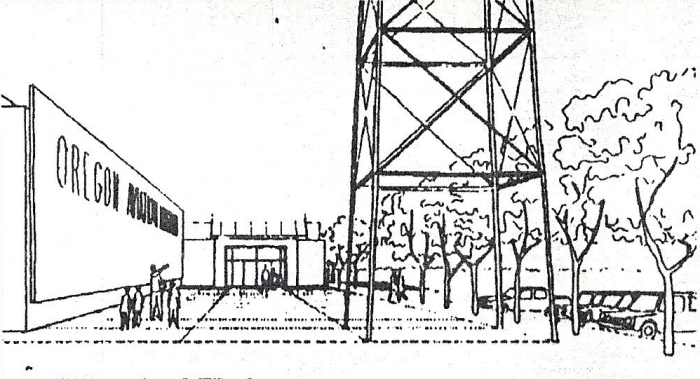

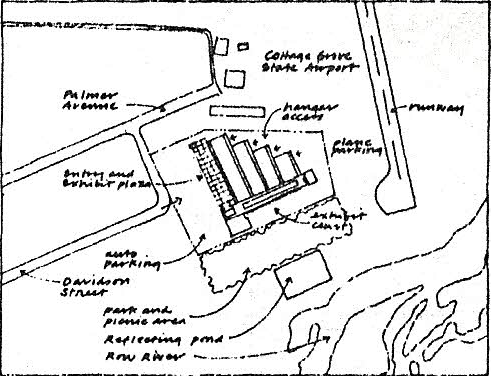

(Source: Oregon Aviation Historical Society & Museum)

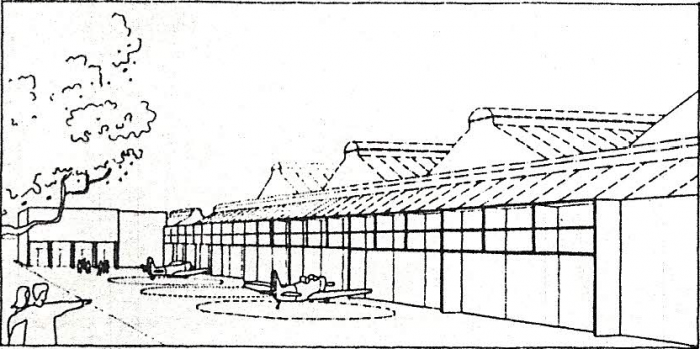

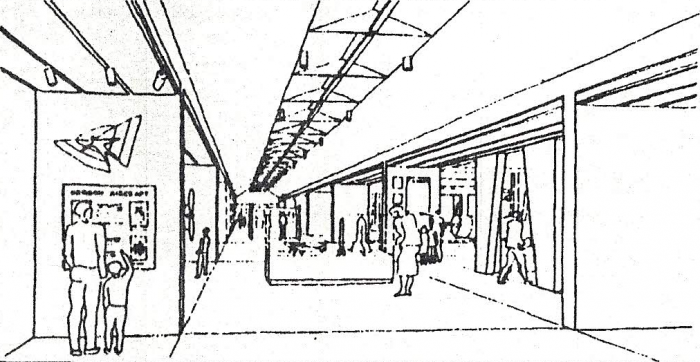

(Source: Oregon Aviation Historical Society & Museum)

Nine years later, significantly scaled down plans for a storage and restoration hangar were successful:

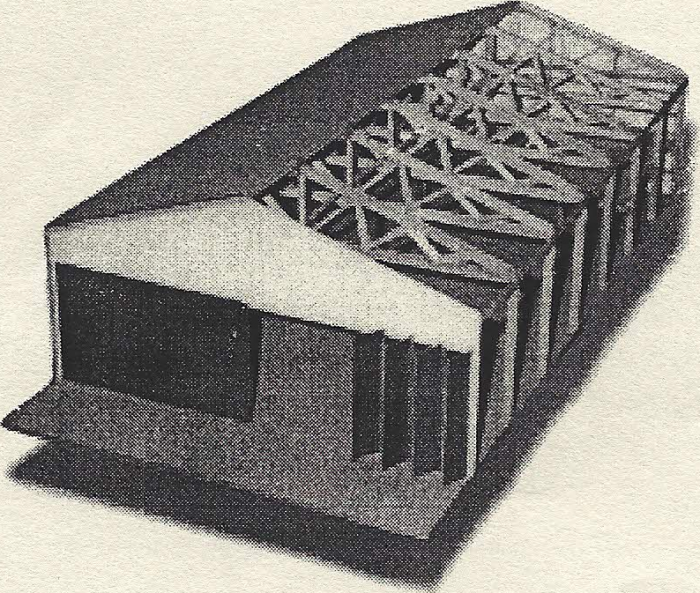

Director Al Grell fashioned this model of
the museum's planned storage/restoration
hangar.

(Source: Oregon Aviation Historical Society & Museum)

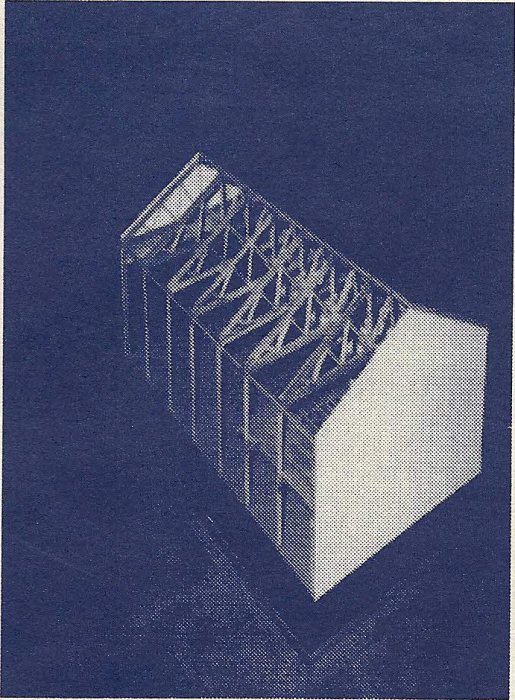

Hangar Model by Al Grell

(Source: Oregon Aviation Historical Society & Museum)

More recently, in 2015, the museum created a rendering for an interpretive center:

Drawing of the hoped-for interpretive center

(Source: Oregon Aviation Historical Society & Museum)
