Anyone have any photos of the underwing rocket installation? I've seen the illustrations in the manual, but don't recall seeing many photos. Anyone ever seen the rails for sale?

Hi,

Check your PM.

Regards,

Benno

Call the Dixie Wing, in Hot-lanta, Georgia. Their LT-6 has the whole setup. If you need the contact info, just give me a holler.

Gary

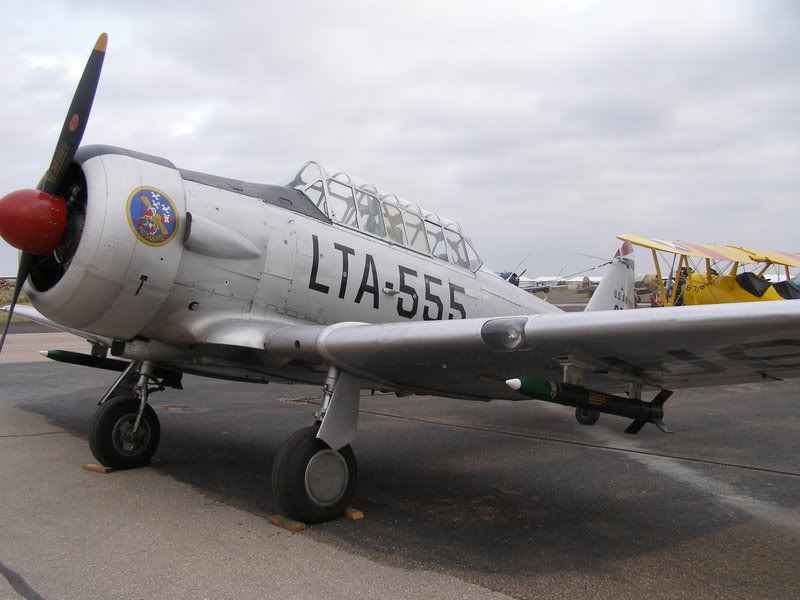

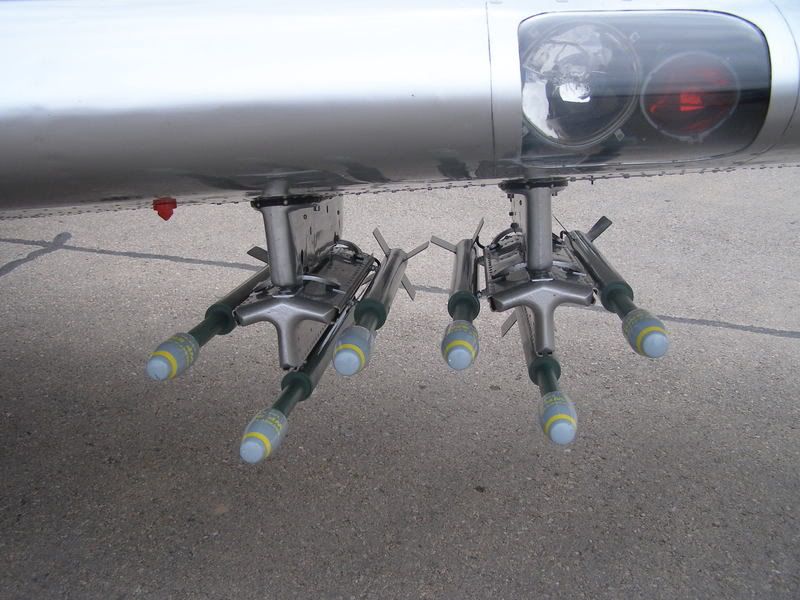

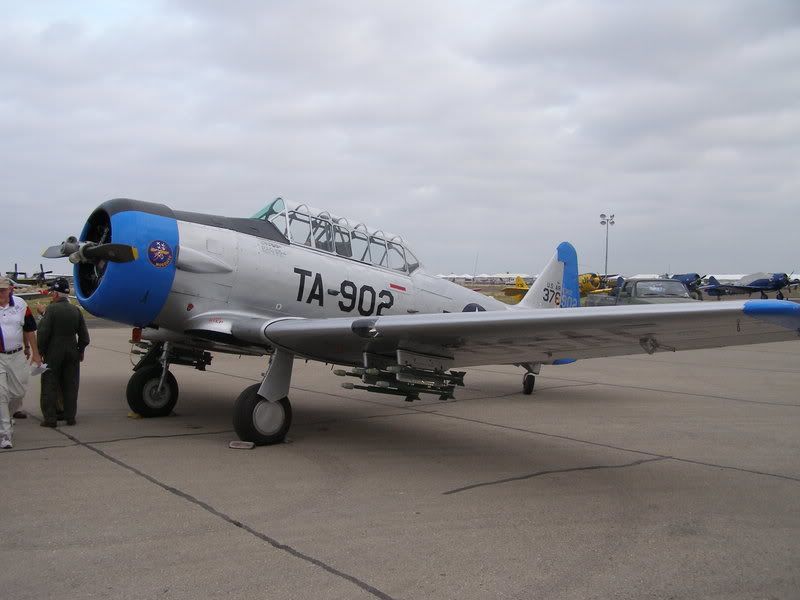

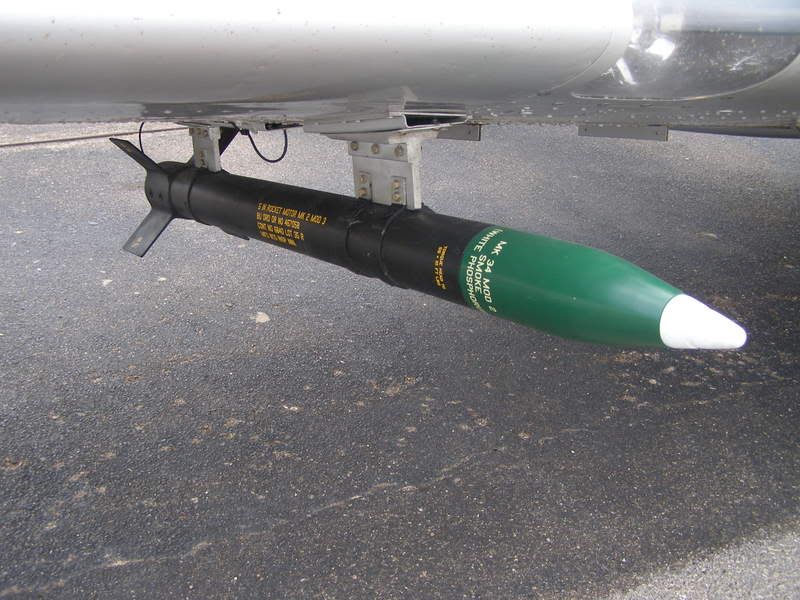

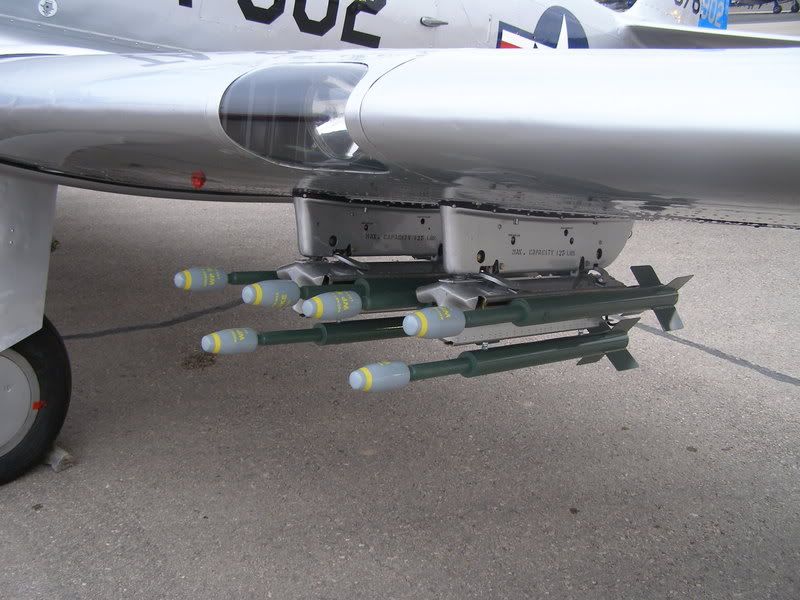

Here are two T-6s with different setups. I took these at Midland this past year. Hope they help a little.

_________________
The more I learn about aircraft, the more I realize I still have to learn.

The NMUSAF has an LT-6G as well. I will be there next weekend.

_________________
Chris Henry
EAA Aviation Museum Manager

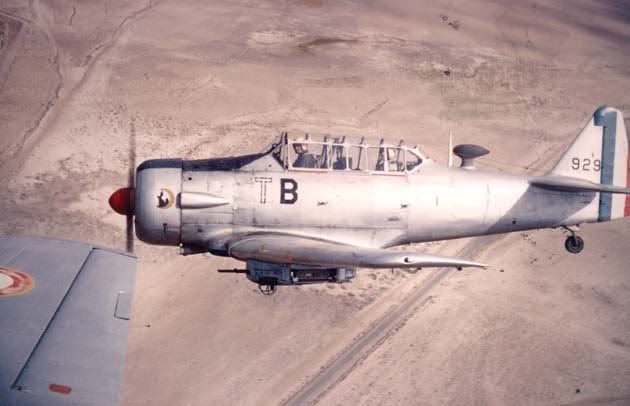

Here's another

_________________
"You cannot invade the mainland United States. There would be a rifle behind each blade of grass..."
Admiral Isoruku Yamamoto

Here's the detail on a wing I spotted in Monroe, LA many years ago. I always wanted to know more about the configuration on this plane, and possibly it's history. I was told it had come though Canada before arriving in Louisiana. Can anyone I.D. the country of origin from what's left of the markings?

_________________
Rob Mears
'Surviving Corsairs' Historian
robcmears@yahoo.com
http://www.robmears.com

Is that a real setup? That missile looks to be just bolted to the wing!

_________________
Magister Aviation
It's all in my book

It is bolted to the wing. They were hoping to be able to find all the pylons and such but at that time this was all they could do. You know how restorations go. They're NEVER finished!

_________________
The more I learn about aircraft, the more I realize I still have to learn.

Obviously there are a few different types here (thanks for the photos Benno)!

I have an NOS Harvard left wing (not for sale) without the provision for the long range bladder that has a panel marked "Aileron Cable" that is attached by 4 Dzus fasteners. When you remove that panel, there is another panel inside almost exactly the same to replace the removed aileron cable marked one except it has an electrical connector on it that is wired to a harness inside the wing. I suspect the connector is for some kind of ordnance installation.

There are 2 pairs of 2 chordwise holes ahead of this access panel. Two are threaded, two are not. I'm trying to determine exactly which equipment was intended to mount in this area. My first guess was a frame to mount rockets, but I suppose that a pod could also mount there.

Anyone know what the Canucks had in mind?

definitely NOT a spad!

Looks like a former French AF example....... many a/c were flown NMF - and the attachment point besides the rockets is for the gun-pod....


Martin

_________________
Flying is easy: just learn how to throw yourself at the ground and miss

So BDK, is that wing for sale?

Chunks

No, but if you have one to trade without the hardpoint and with the fuel bay in similar condition, let me know. Or a right wing with the hardpoint and without the fuel bay... I'm not sure what I want but it would be cooler, although by no means even important, if both wings matched each other.

It seems clear that what I have is for the pod. You can see the outline of the pod to the left in this photo:



The access panel I was referring to is the one on the upper left.
