Hi, thank you for your comments on the "correcting" thread.

Now here are the pictures in Armyjunk's thread I could not identify.

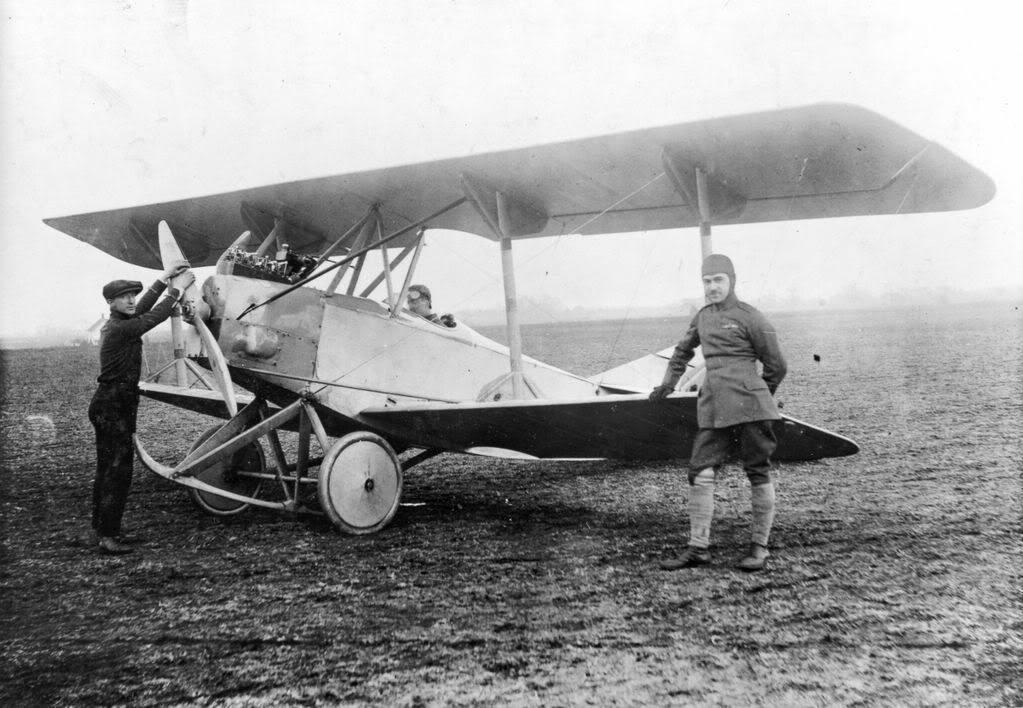

The caption of first one mentions the "Air Engineering Corps" and a person named "Bruce Eytinger", but I could not extract further information out of this. Does anybody know the aircraft type?

The next two show bombers of 1920 style. The manufacturer might be "Heinrich". There is such a firm mentioned within aerofiles.com, but no reference to aircraft shaped like these.

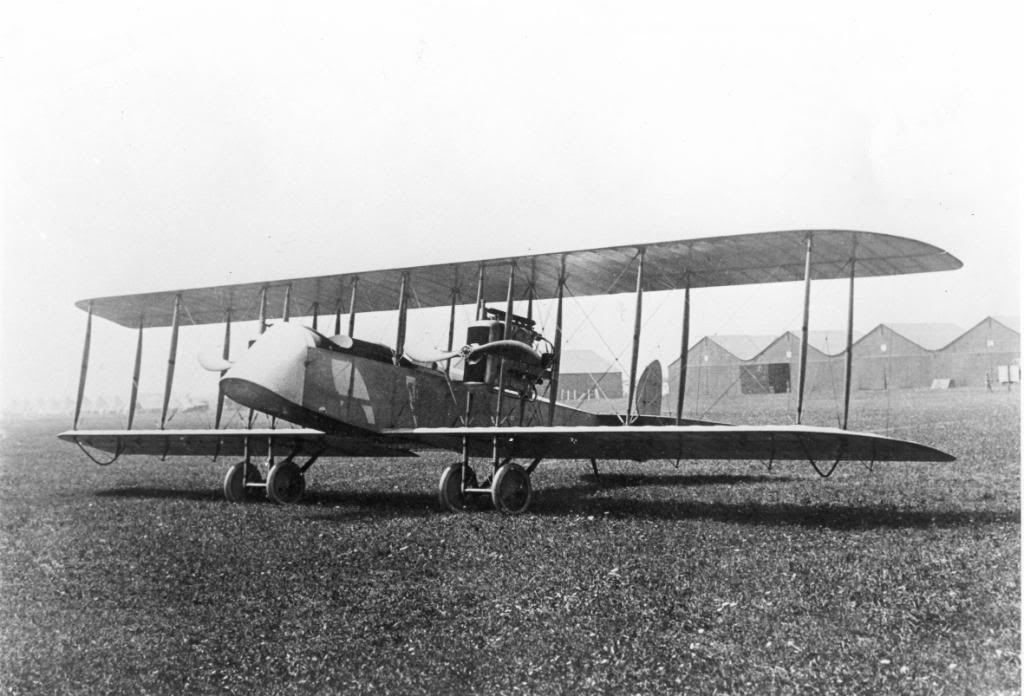

The first one obviously was photographed on Curtiss Field:

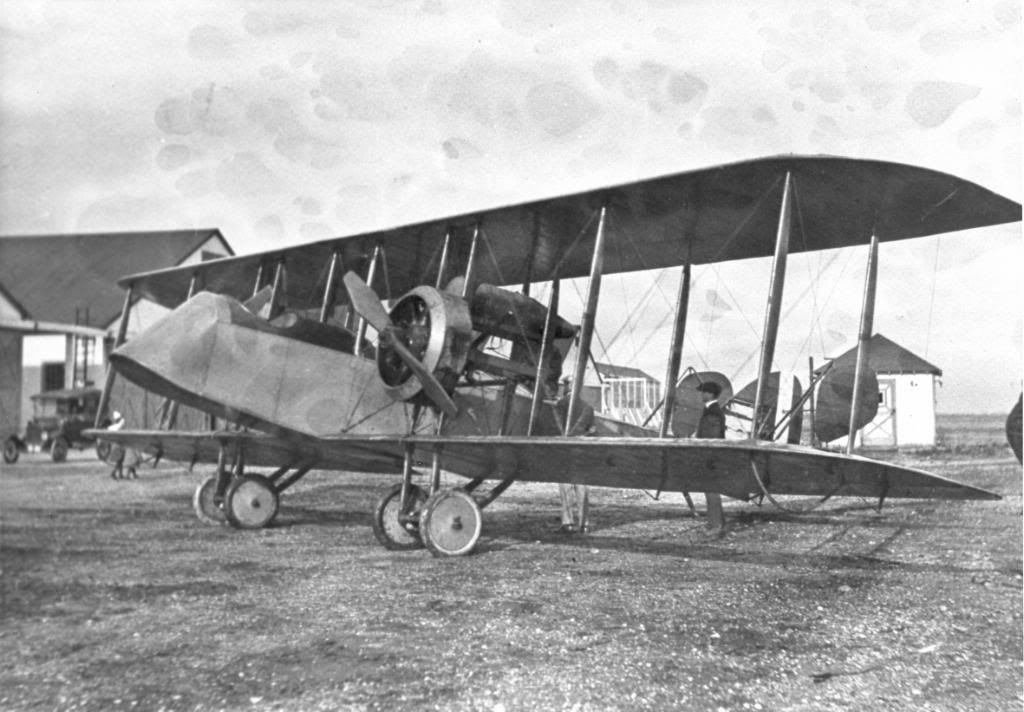

The second one on Nassau Boulevard Airport:

This rather scary looking machine belongs to Grumman's. The extractable information is "aneochiccamber 1961". Can anyone give a little bit of information?

What is this gagdget underneath the Grumman Goose? A "ski" providing stability in water? Or a reconnaissance device?

Thank you for every answer!

Regards, RT


Top
 Profile

PostPosted: Thu Jun 17, 2010 12:49 pm
Offline
Long Time Member
Long Time Member

Joined: Sat Dec 22, 2007 12:36 am
Posts: 7961
Location: Mt. Vernon, WA.
No idea about the teeny biplane, the next two look like they were either scared by, or are dirivatives of WW1 CAUDRONS. Perhaps JDK could spread some illumination on them.
The 'aneochicchamber is used to test antennas and other avionics either pieces or, in some cases, entire airplanes. The foam wedges absorb any outside extranious sounds so the part (s) being teated are free from outside distracting sounds. :oops:
The JRF with the high water pants was used to test various hydrofoil like skis after the war. Since it was a conversion to a straight boat (no gear) the beaching gear had to exceptionally long to deal with the fixed ski on the bottom. You can find a pretty concise article about the whole project in AERO FILES. The next time you watch footage of some guy landing an F4F, be glad no one tried to wheel land this thing!! :shock: 8) :lol:
