P-47 throttle quadrant details

C VEICH · **Joined:** Sun Nov 15, 2009 12:40 pm **Posts:** 1476

Looking for some really good pictures or diagrams of the assembly and function of the throttle quadrant in a P-47. Prefer a D but any version gladly accepted.

TIA,
Chad Veich

Zachary · **Posted:** Wed Nov 09, 2011 9:45 am

These aren't the best, but they're what I have on hand.

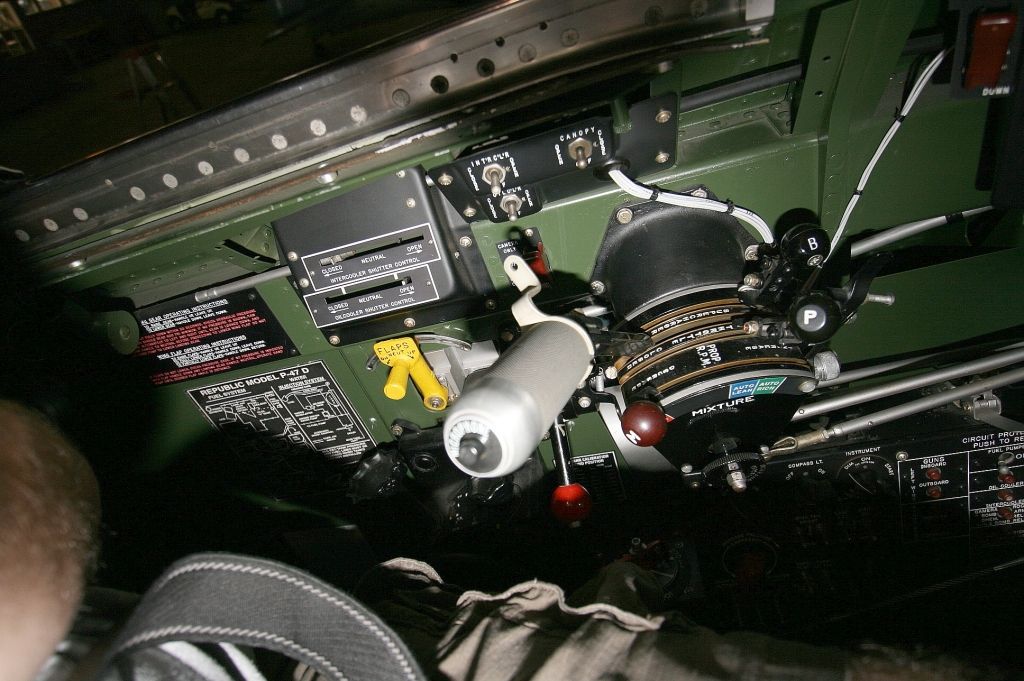

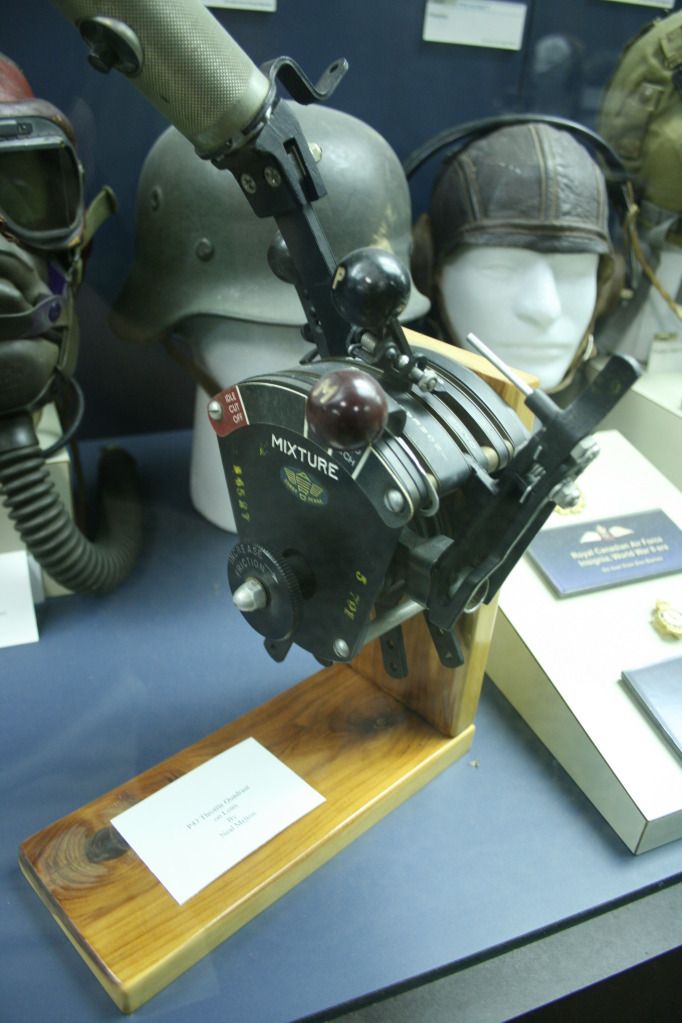

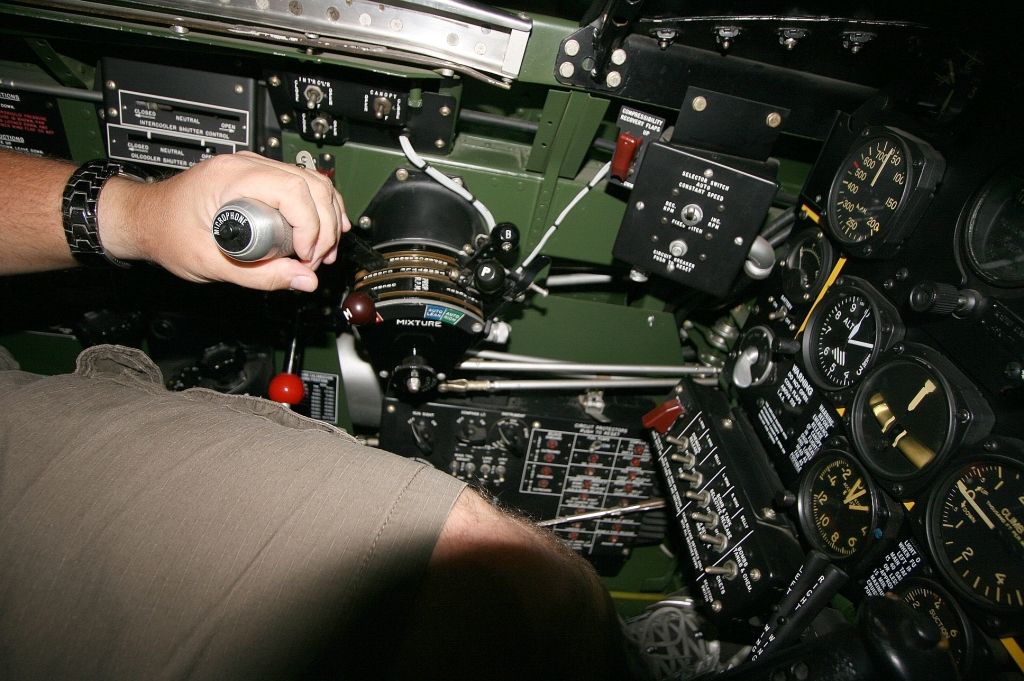

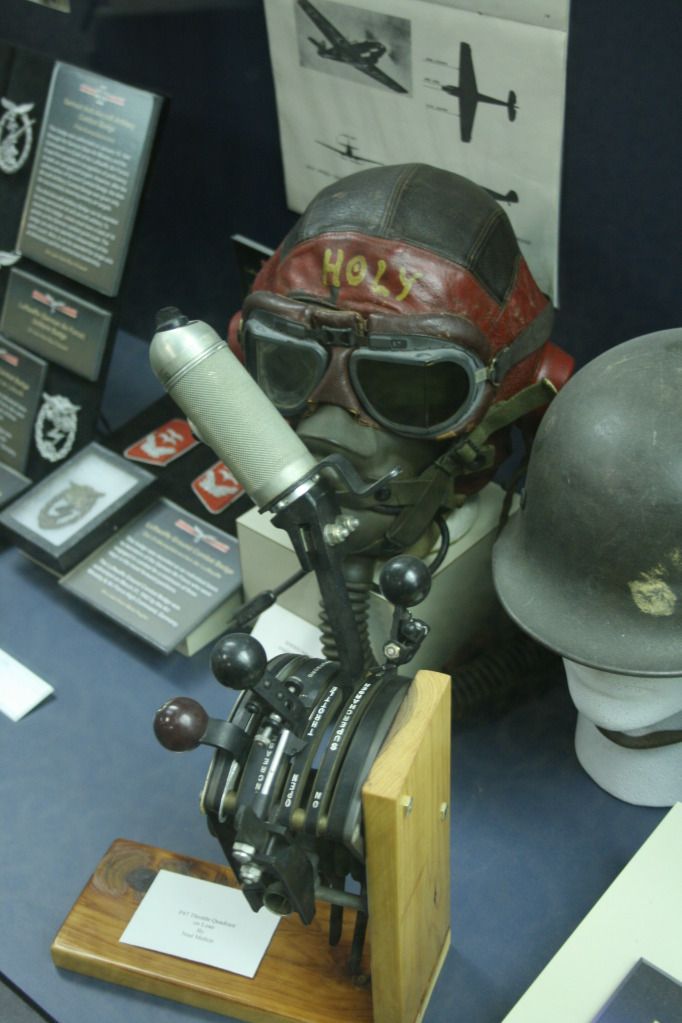

The first two are from the P-47D "Hairless Joe" on display at the Tillamook Air Museum, while the last two are from a display case at the Tennessee Museum of Aviation.

N3Njeff · **Posted:** Wed Nov 09, 2011 12:40 pm

anyone know where I can find a Mixture Knob?

C VEICH · **Joined:** Sun Nov 15, 2009 12:40 pm **Posts:** 1476

Thanks Zachary, those are very helpfull.

CraigQ · **Posted:** Wed Nov 09, 2011 8:41 pm

Here's a scan out of the parts manual if it will help. Let me know if you need the parts list.

Craig

C VEICH · **Joined:** Sun Nov 15, 2009 12:40 pm **Posts:** 1476

That's fantastic CraigQ, thanks! Any chance you would be willing to email the original file to me at cwveich@cwvmodels.com? I'd love to see it in a bit higher resolution.

Thanks!

Zachary · **Posted:** Thu Nov 10, 2011 11:06 am

Chad, please tell me you're making a kit of the throttle quadrant (or even better, the cockpit)???

Zack

C VEICH · **Joined:** Sun Nov 15, 2009 12:40 pm **Posts:** 1476

Zachary wrote:

Chad, please tell me you're making a kit of the throttle quadrant (or even better, the cockpit)???

Zack

Hi Zack,

I'm a radio control enthusiest and I am working up a 1/6 scale cockpit kit for P-47 builders. I'm thinking I will also offer a 1/4.5 scale to go with the new 110" span CompARF P-47 as seen below.

Zachary · **Posted:** Thu Nov 10, 2011 4:35 pm

Thats cool! Can't wait to see the completed 'pit.

Zack
