Vought-Sikorsky F4U Corsair in the wind tunnel ...

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Mark Allen wrote:

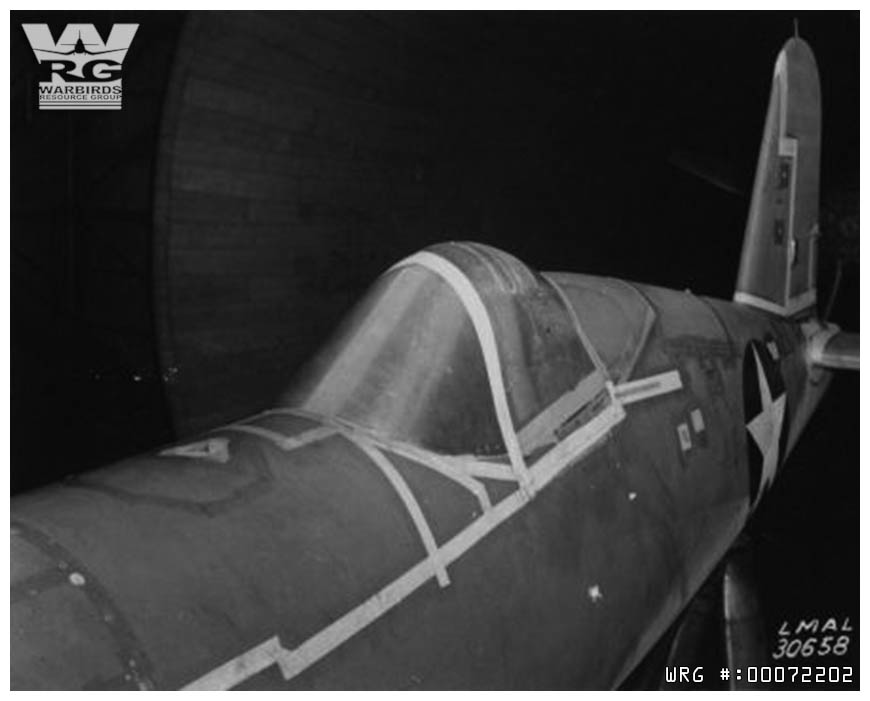

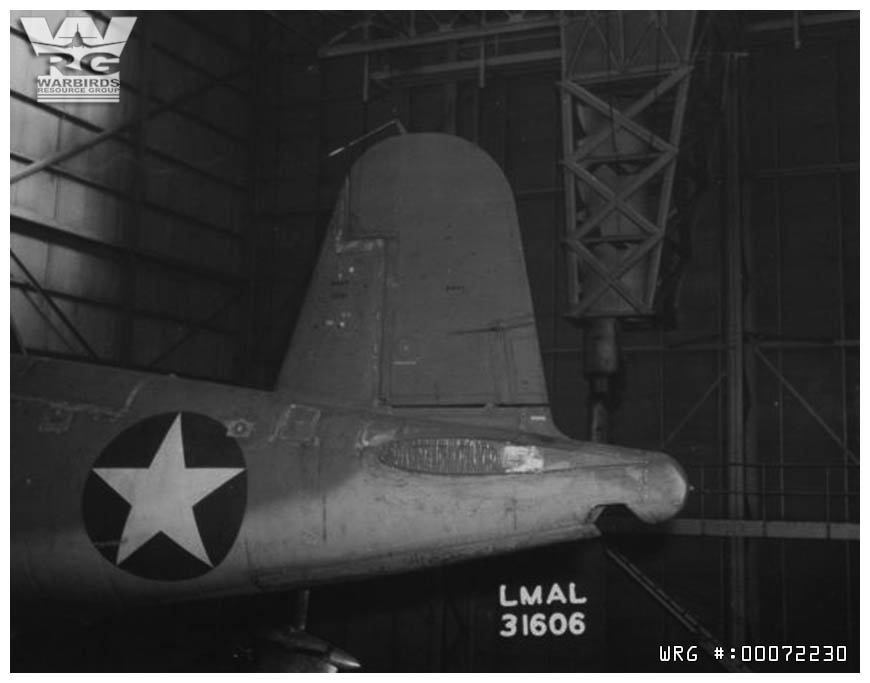

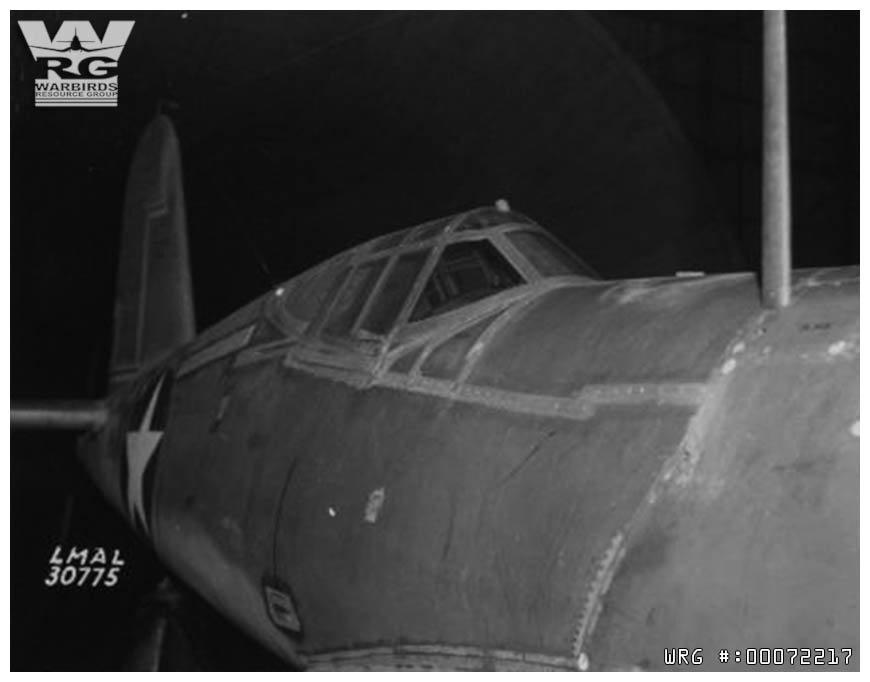

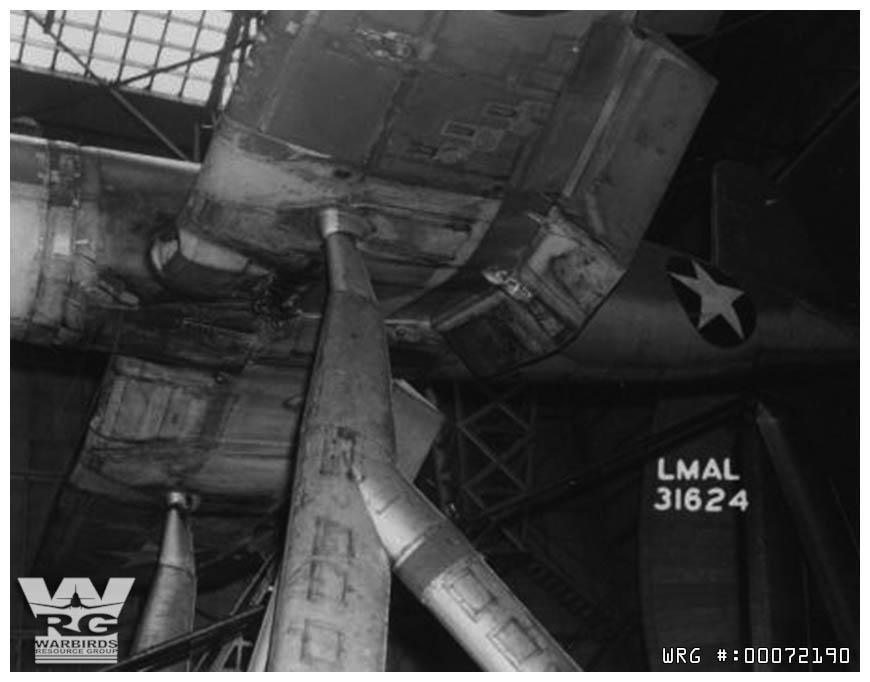

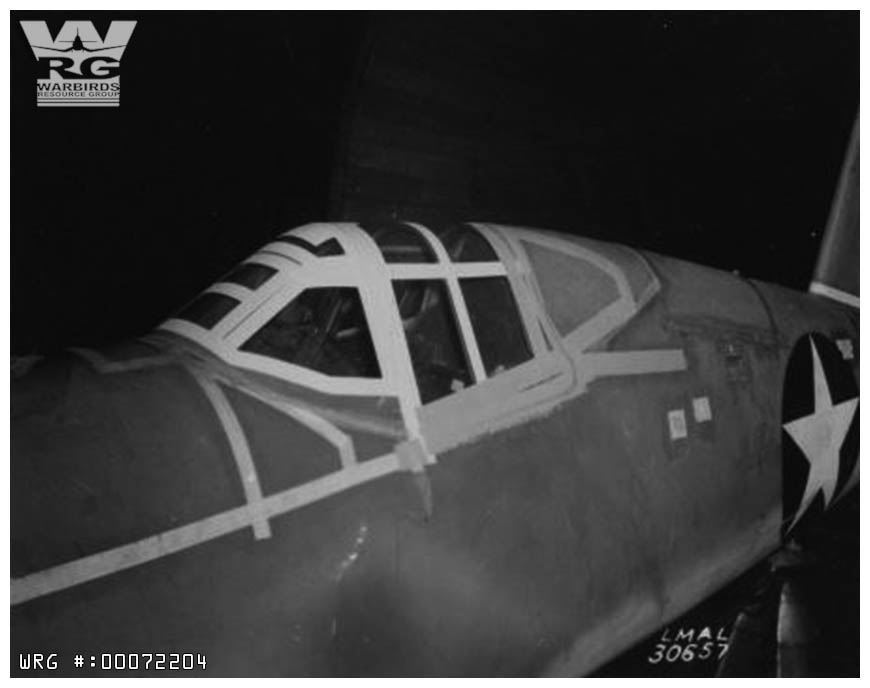

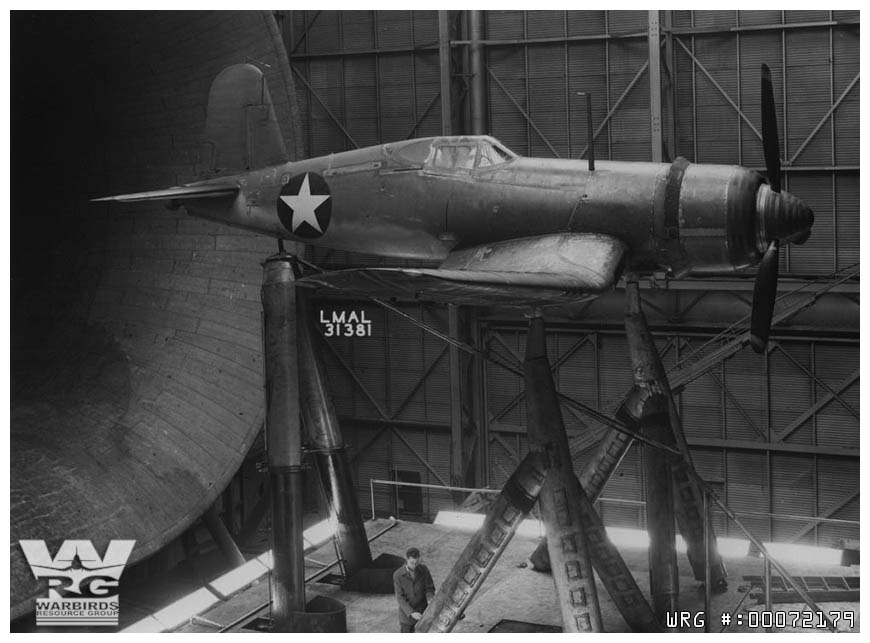

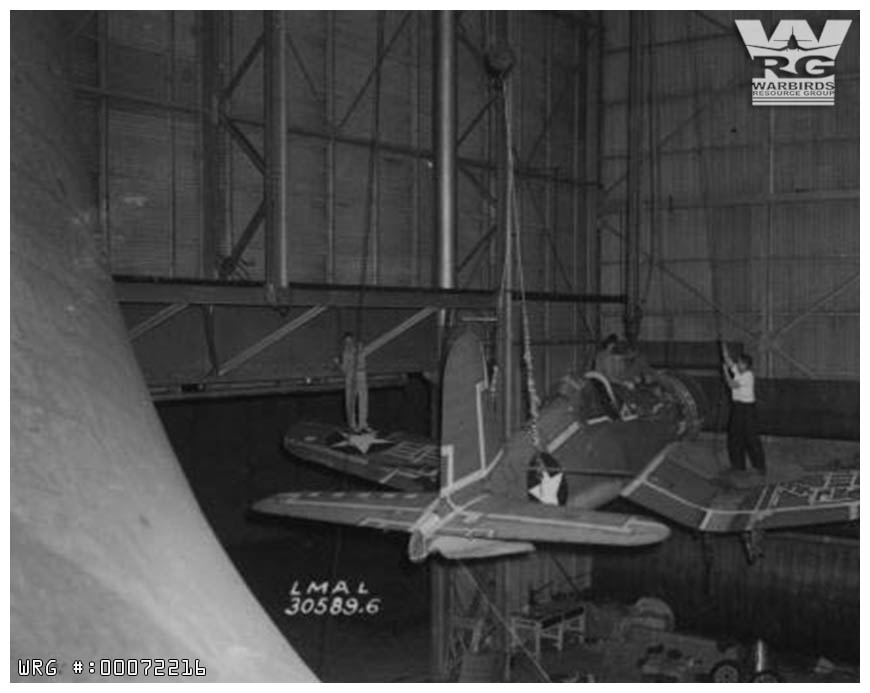

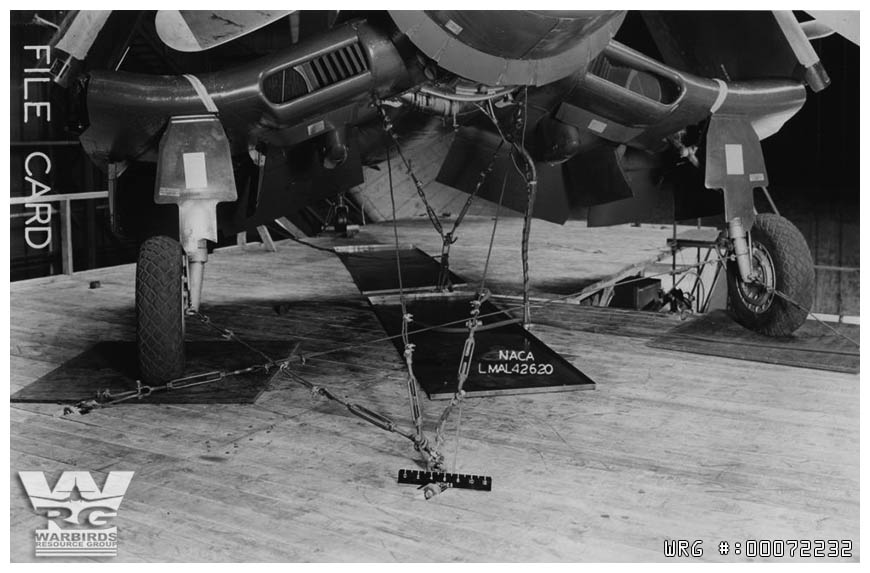

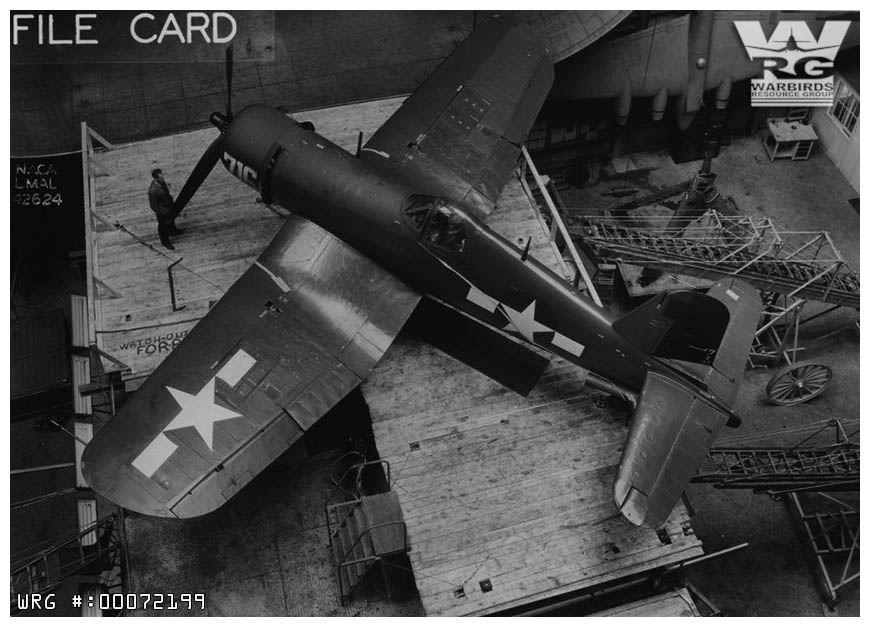

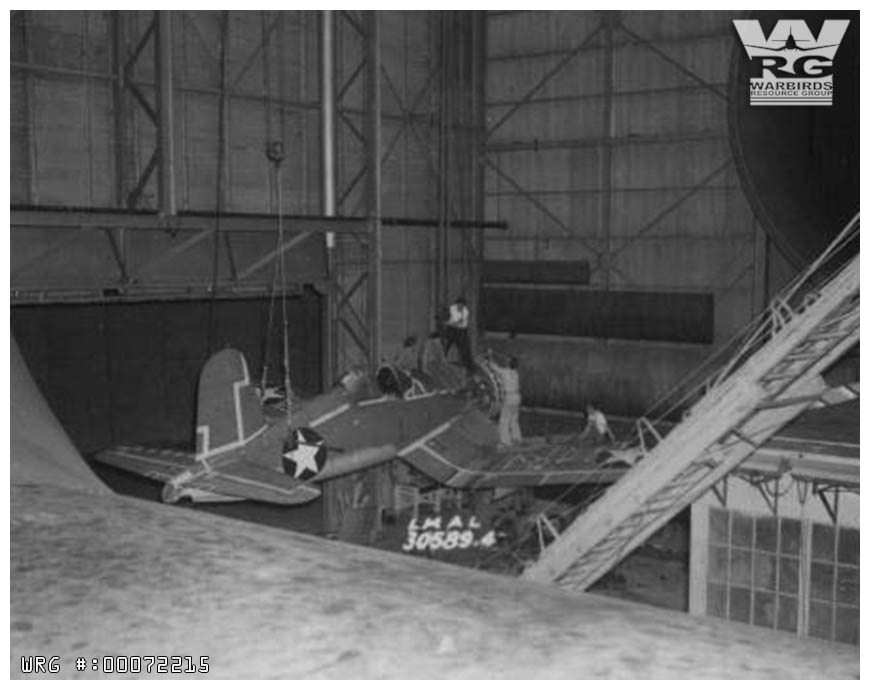

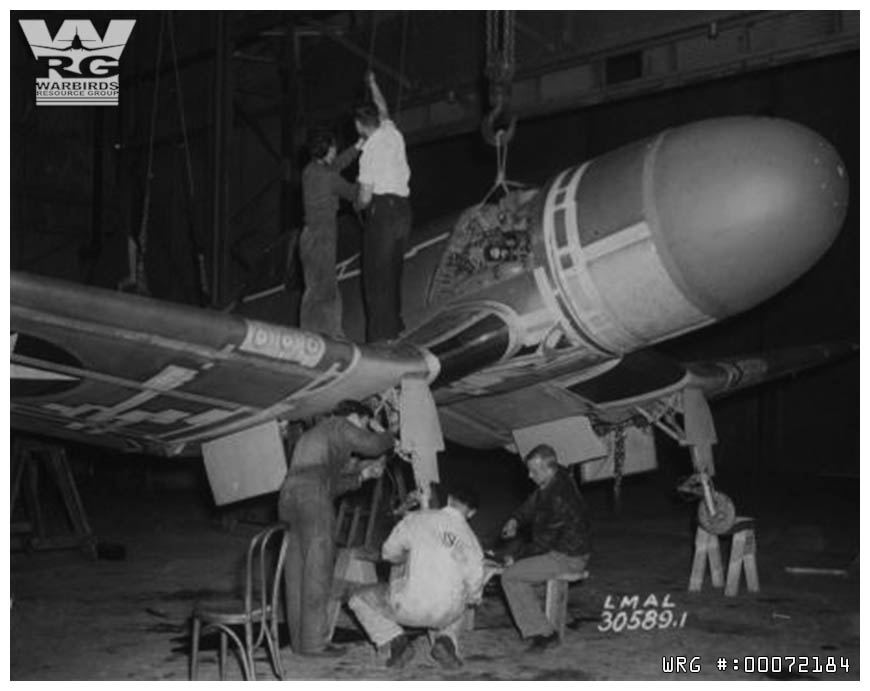

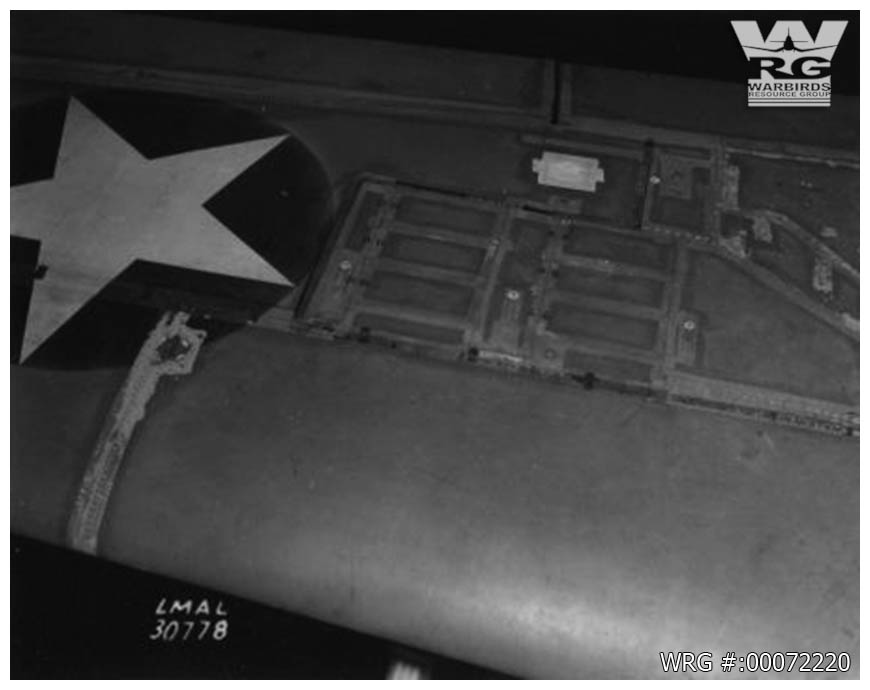

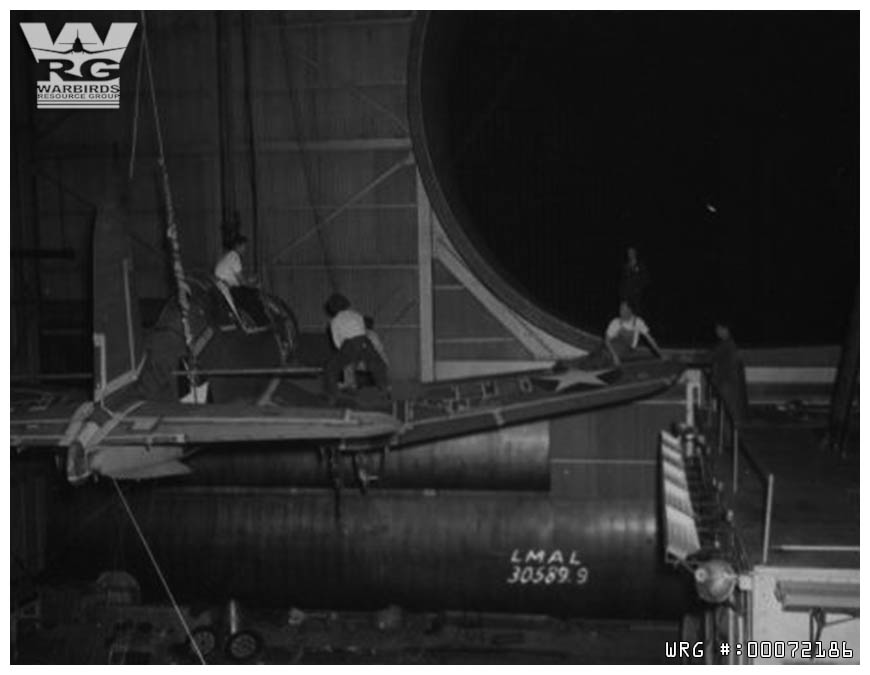

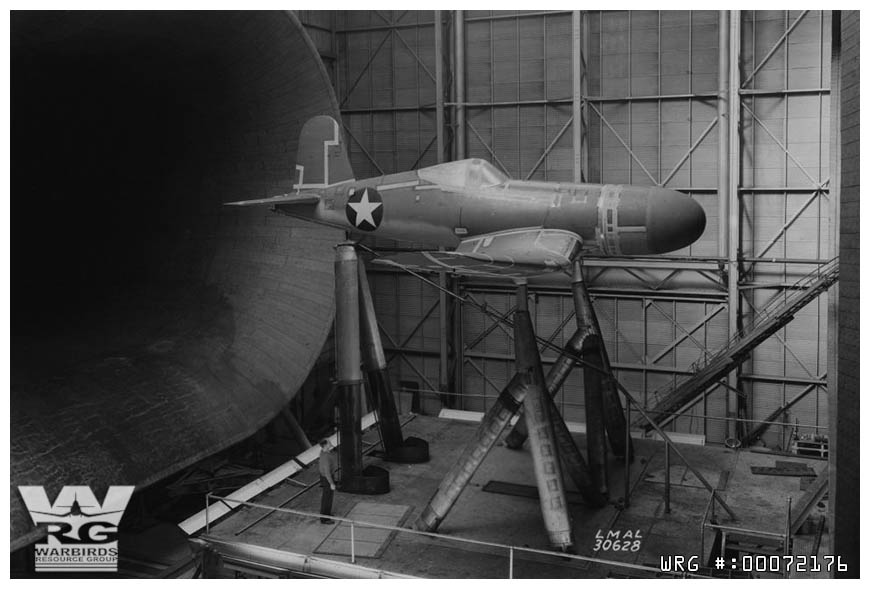

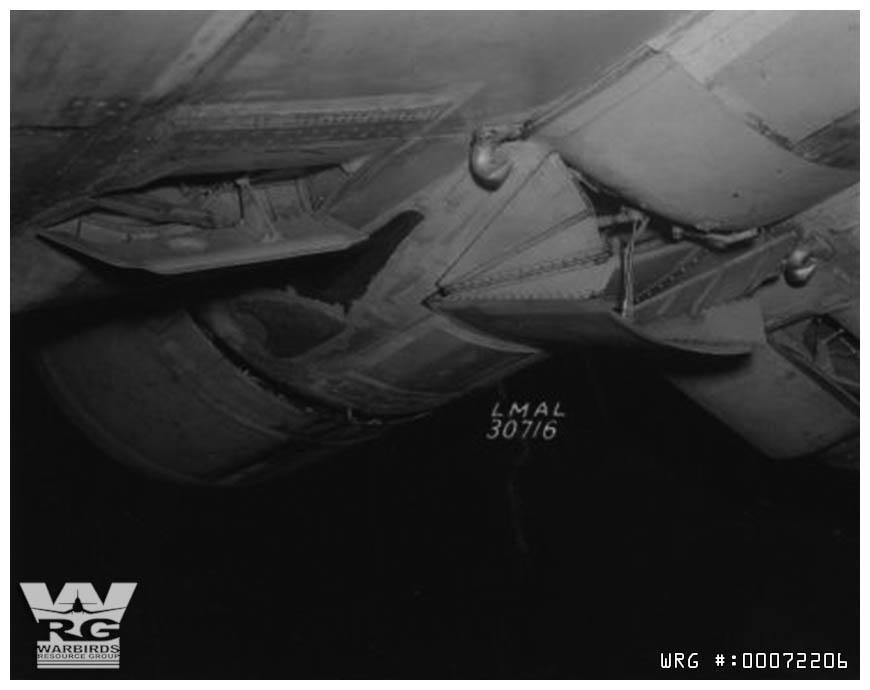

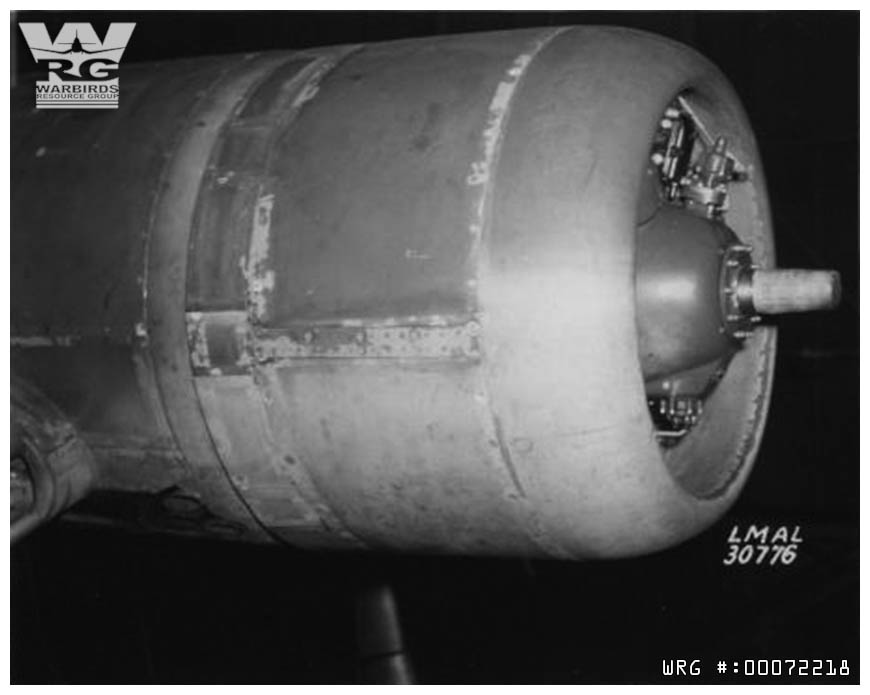

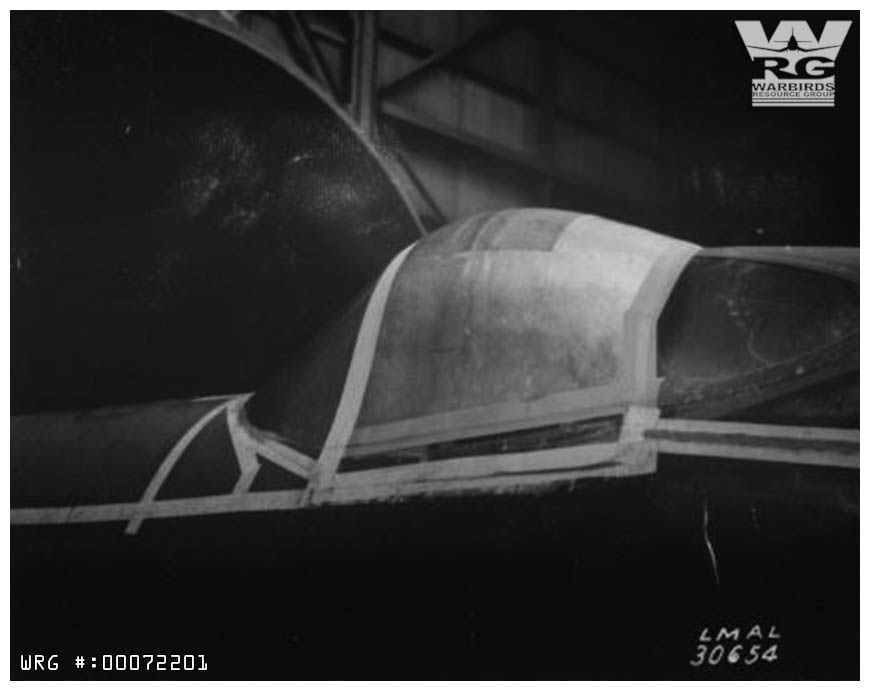

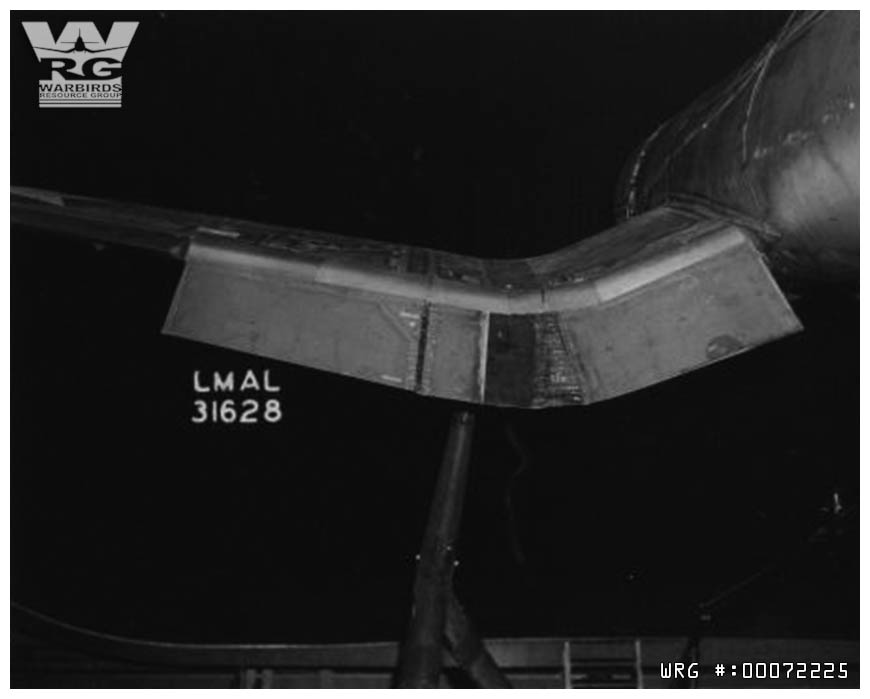

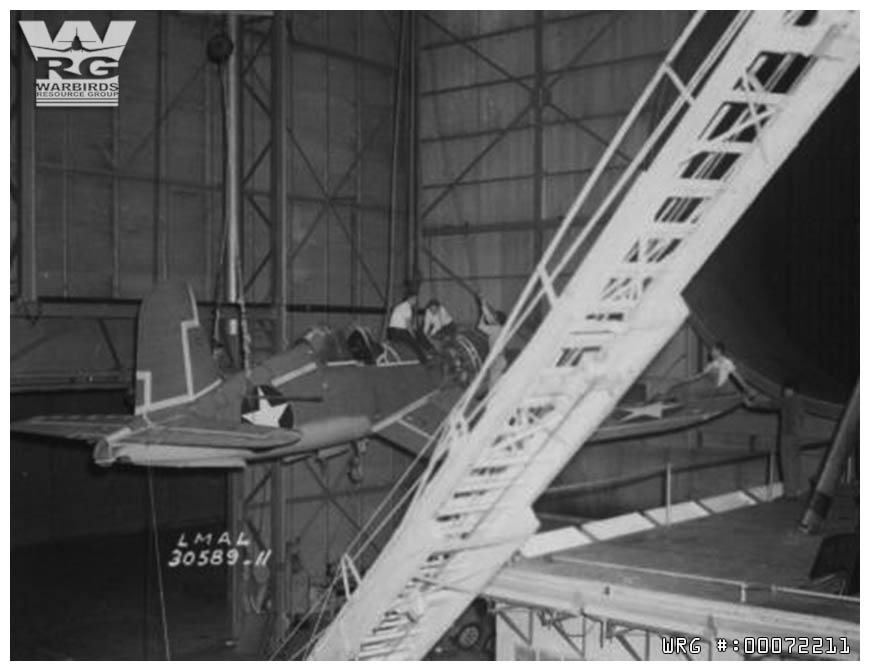

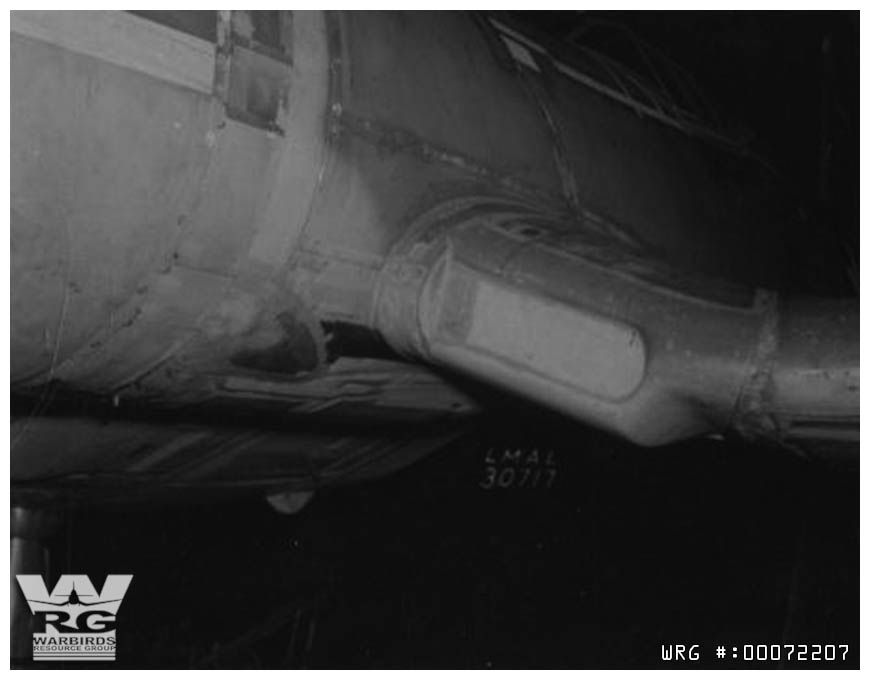

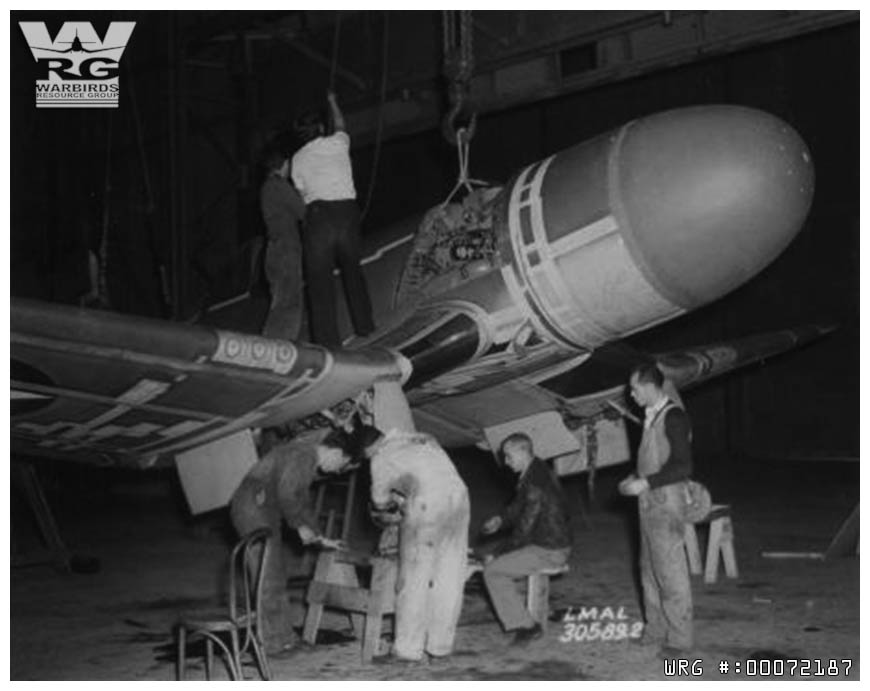

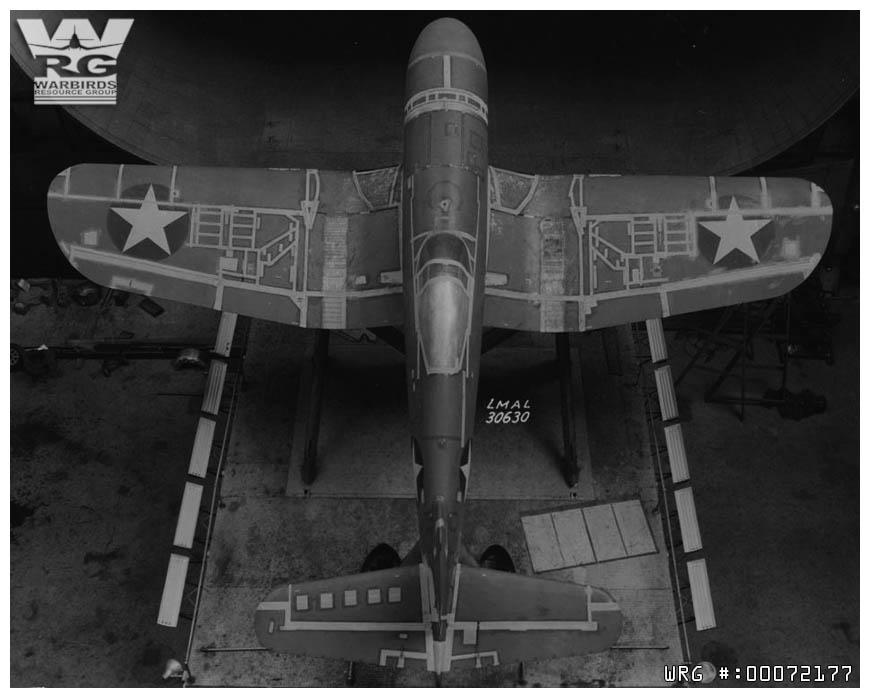

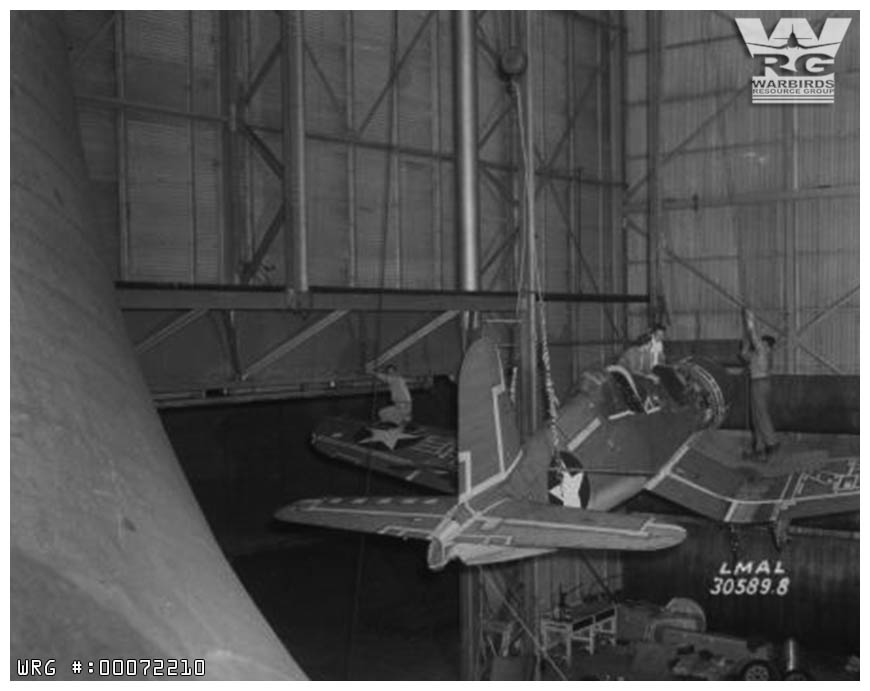

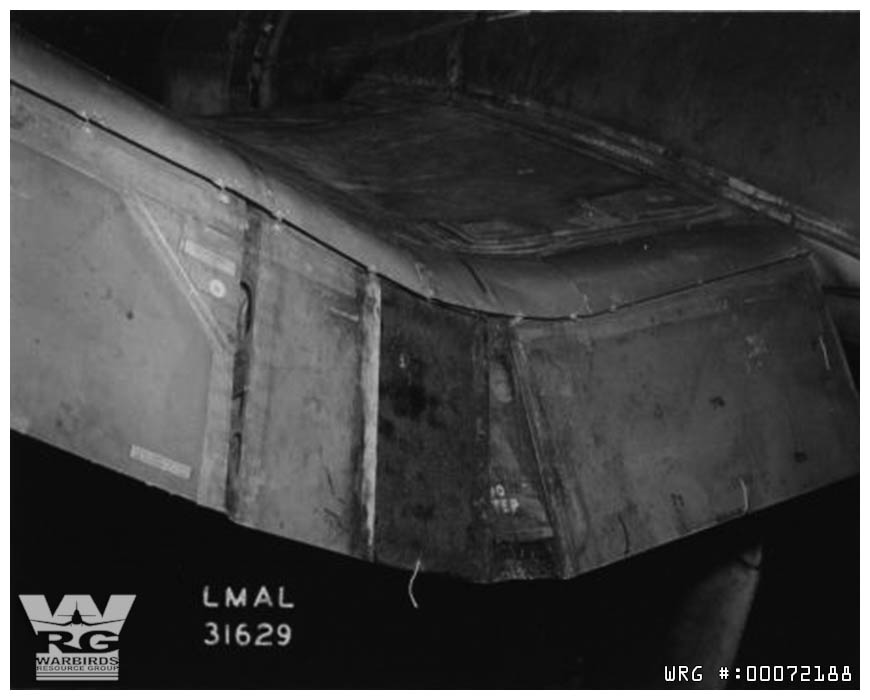

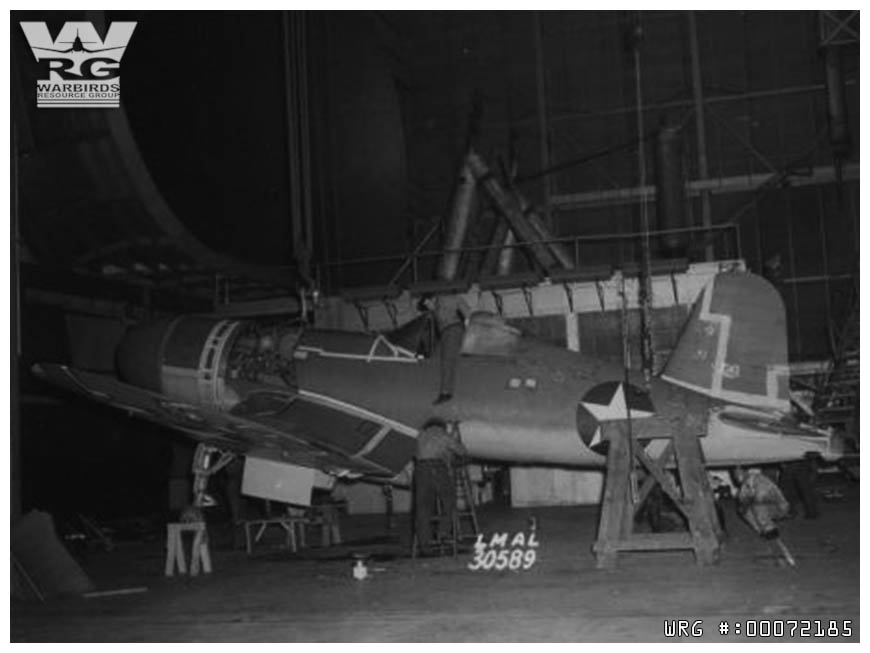

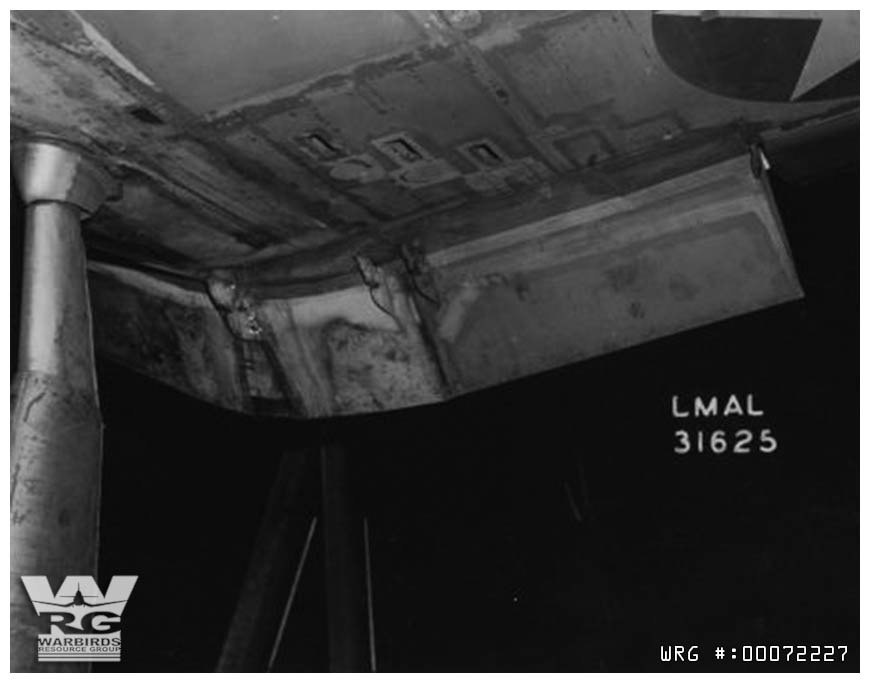

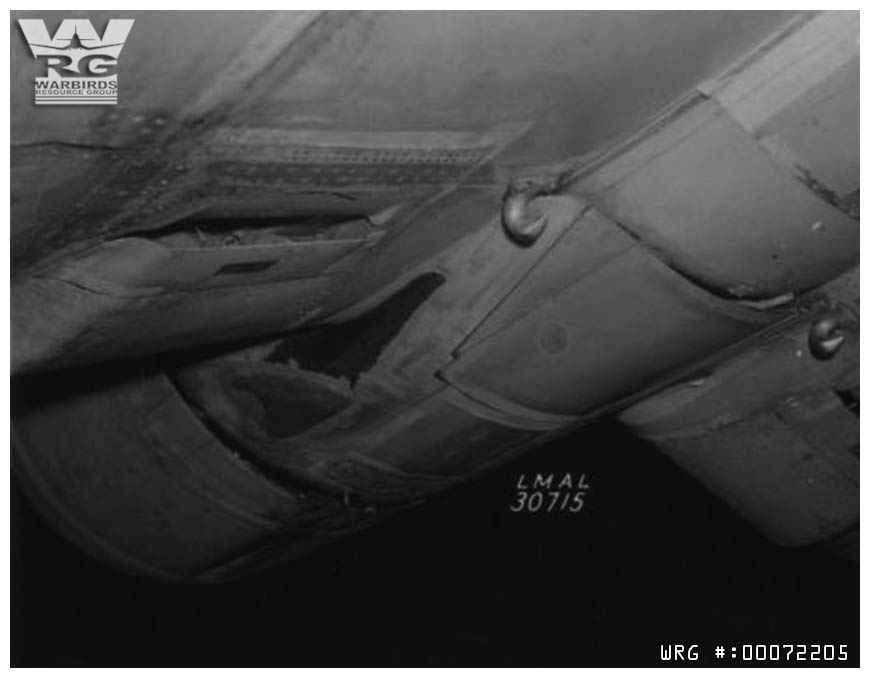

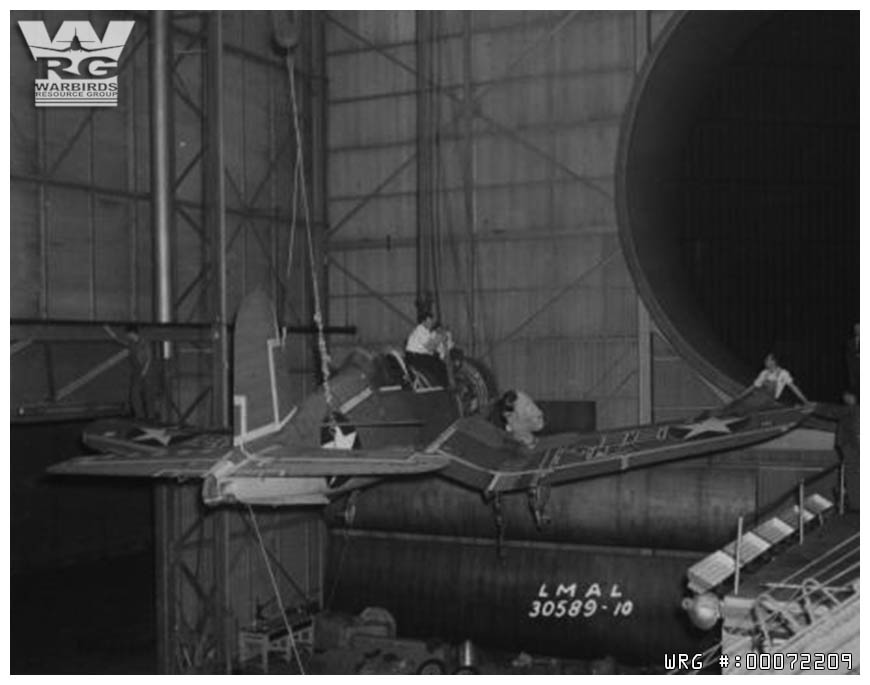

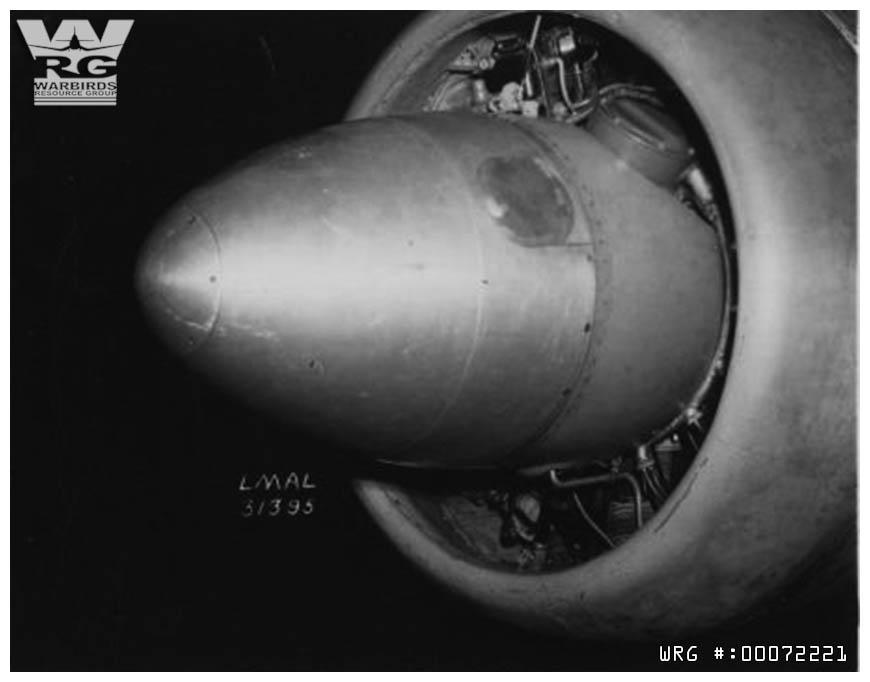

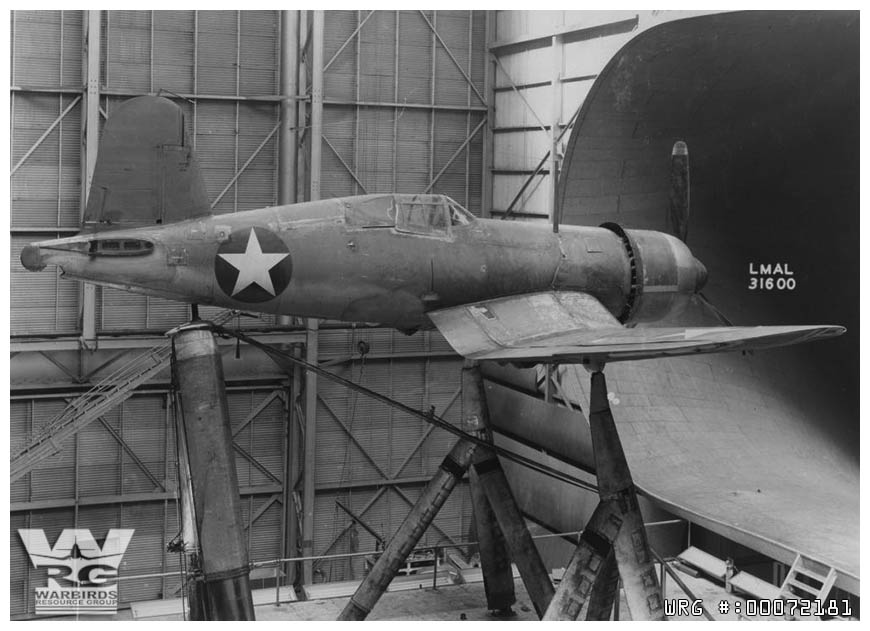

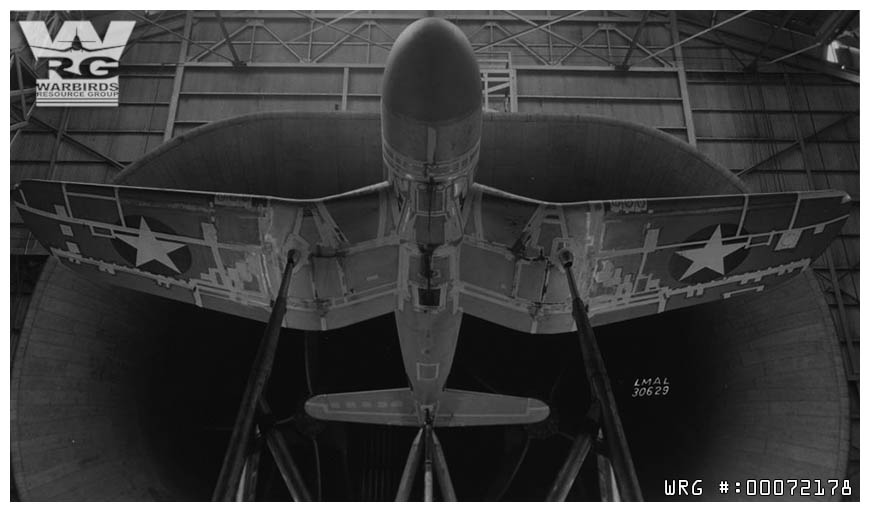

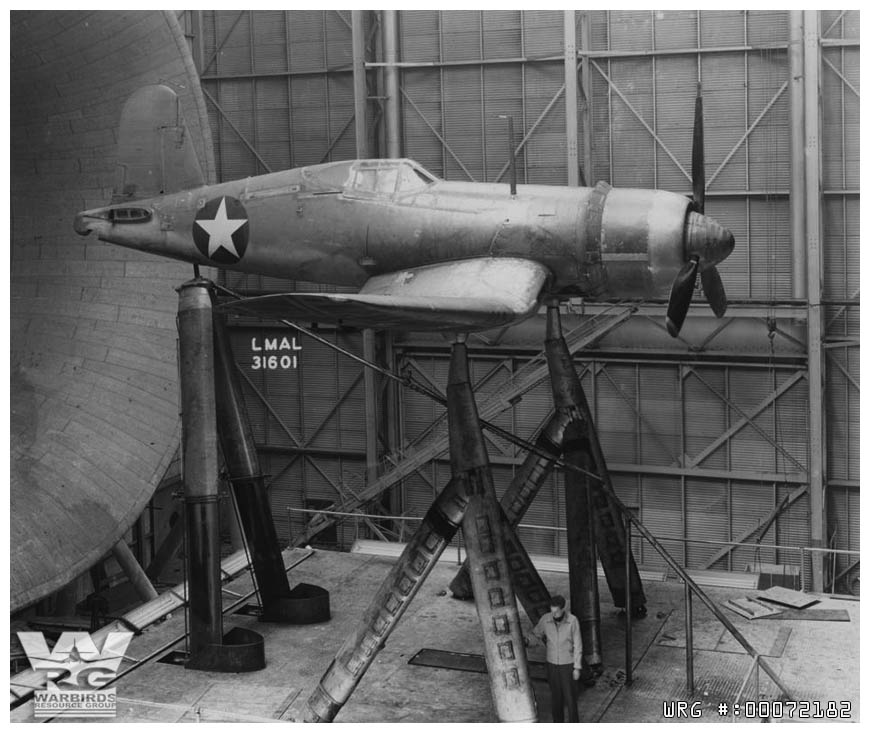

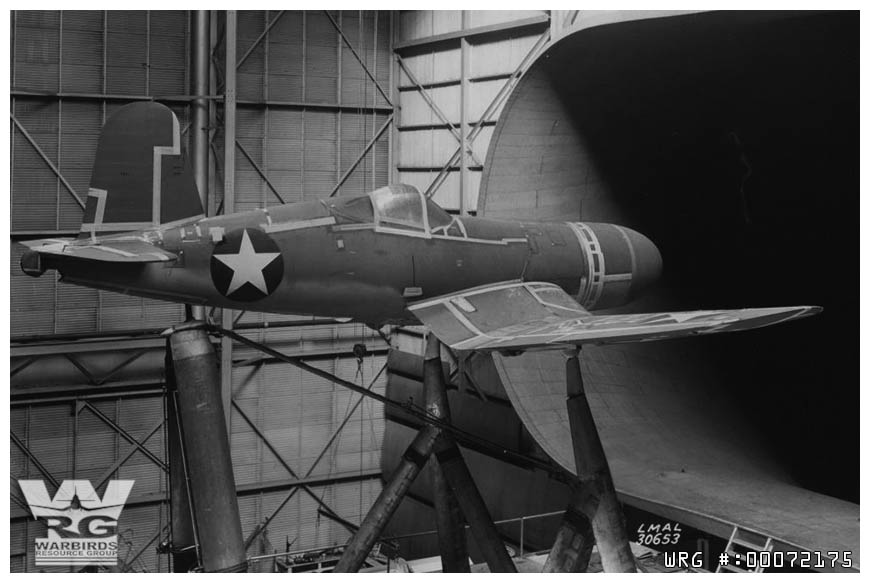

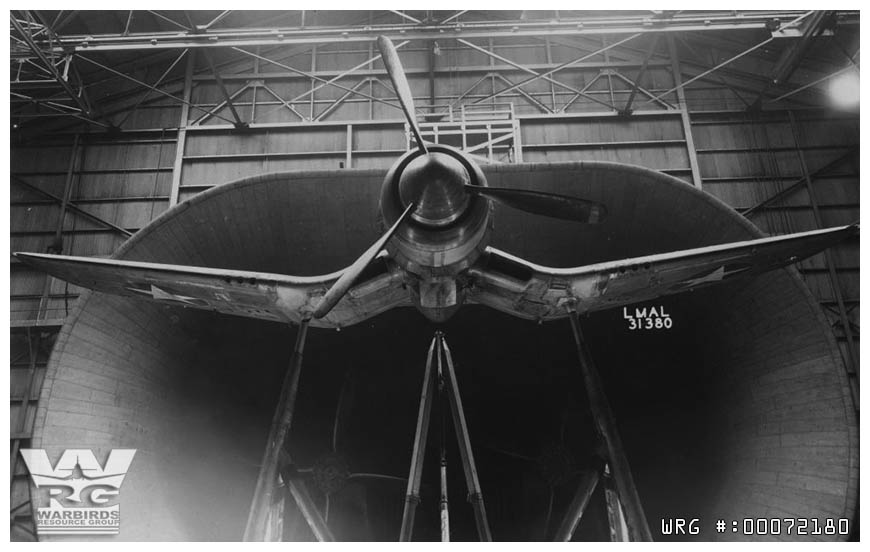

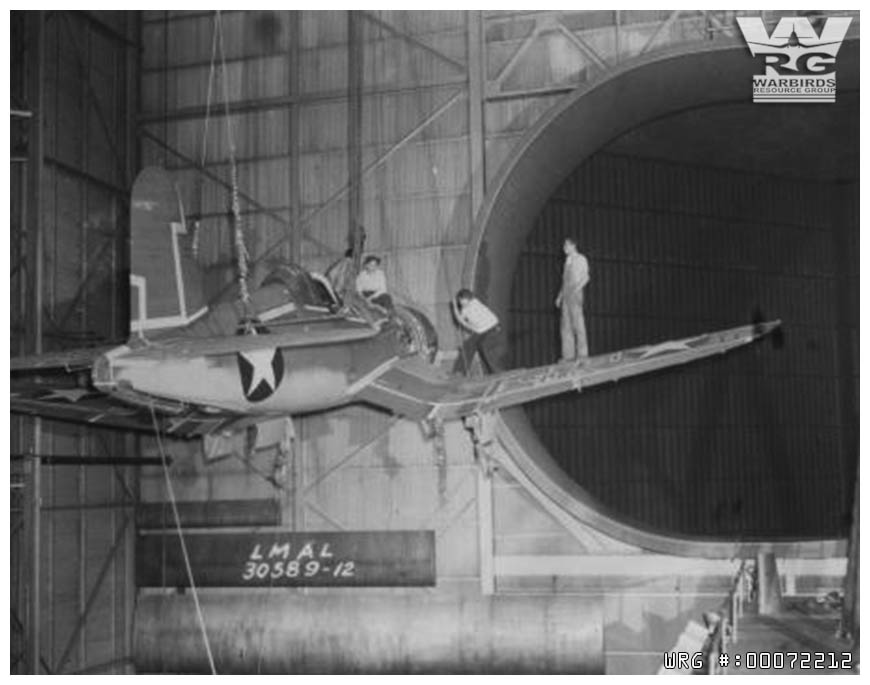

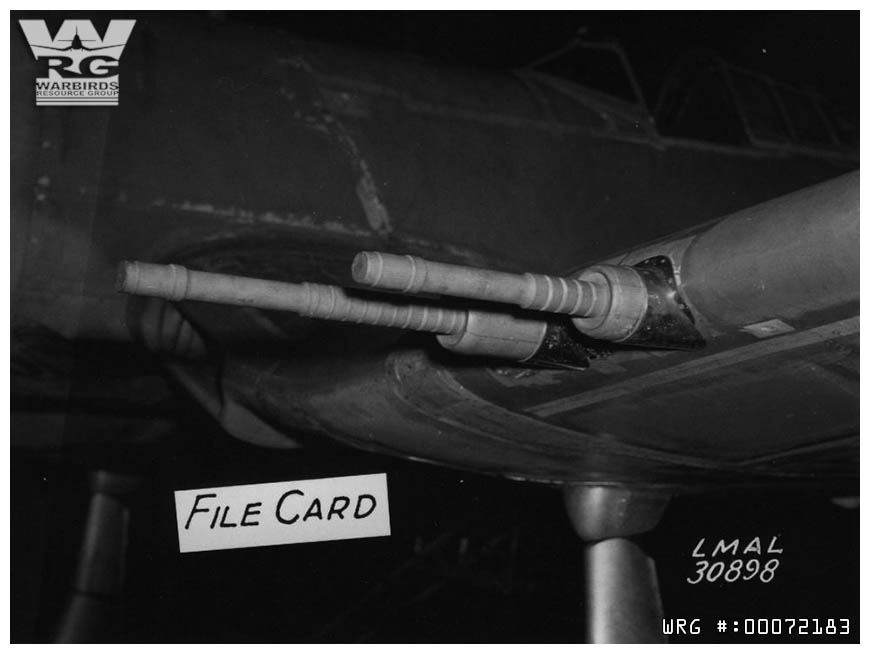

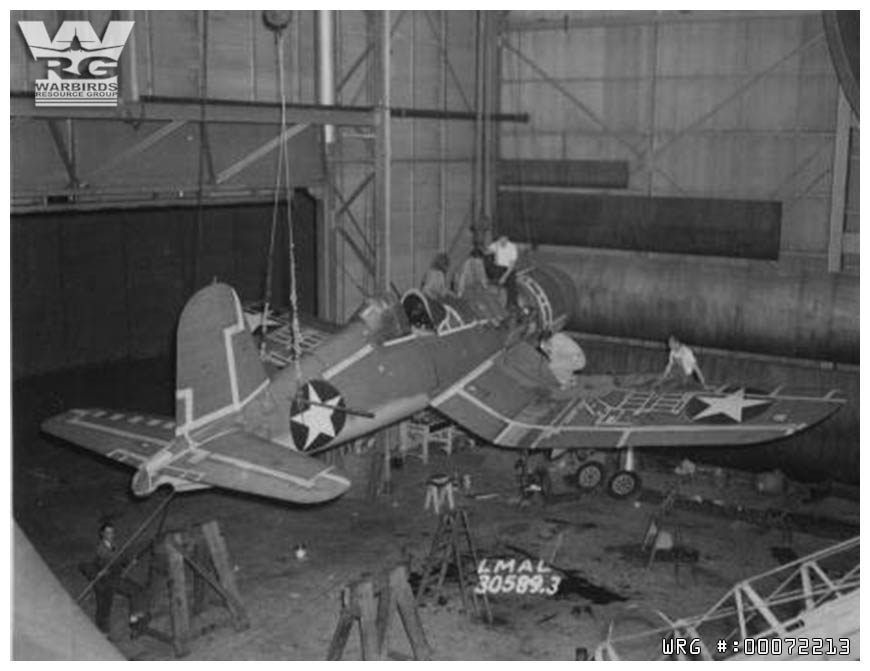

What the h*ll might as well post these too .... probably just me but these planes in wind tunnel photos are pretty cool. Show some amazing detail as well. Wind Tunnel testing January 1943

Part 1

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Part 2

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Part 3

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Part 4

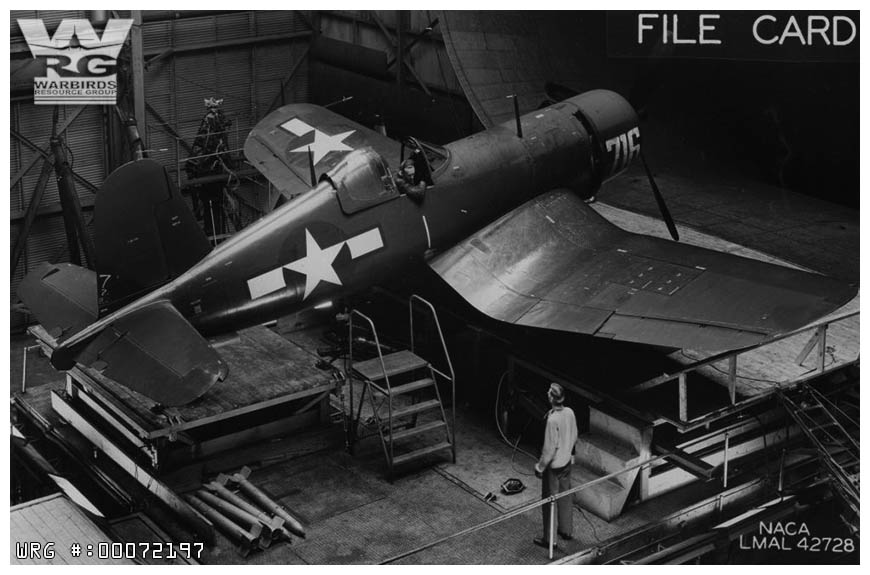

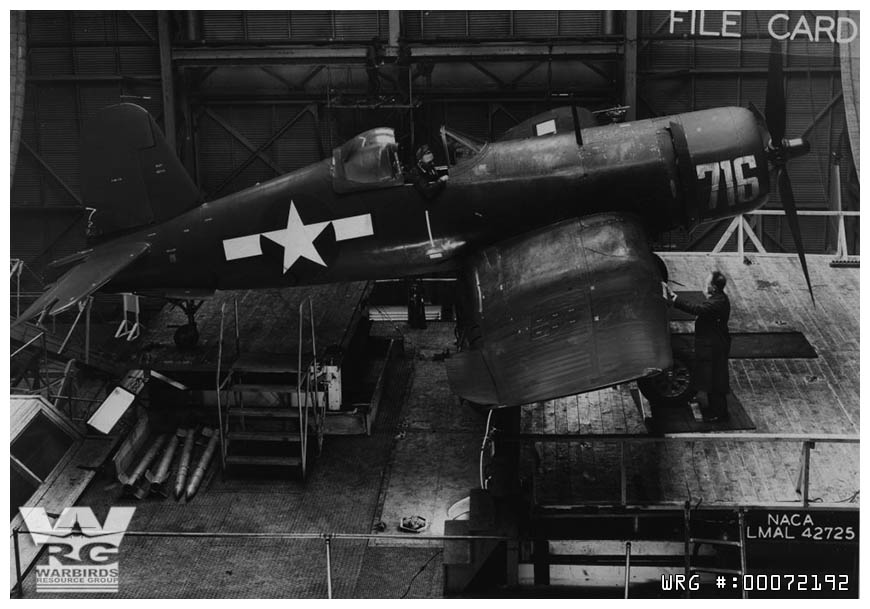

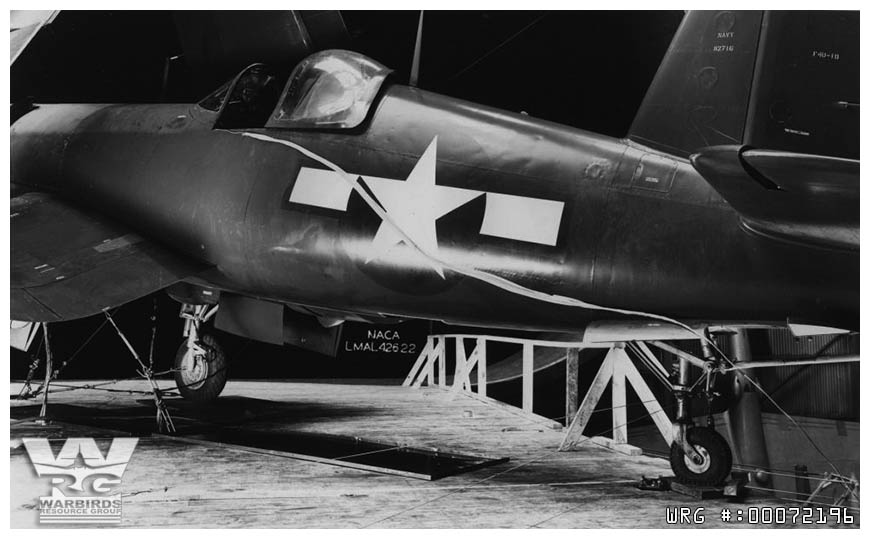

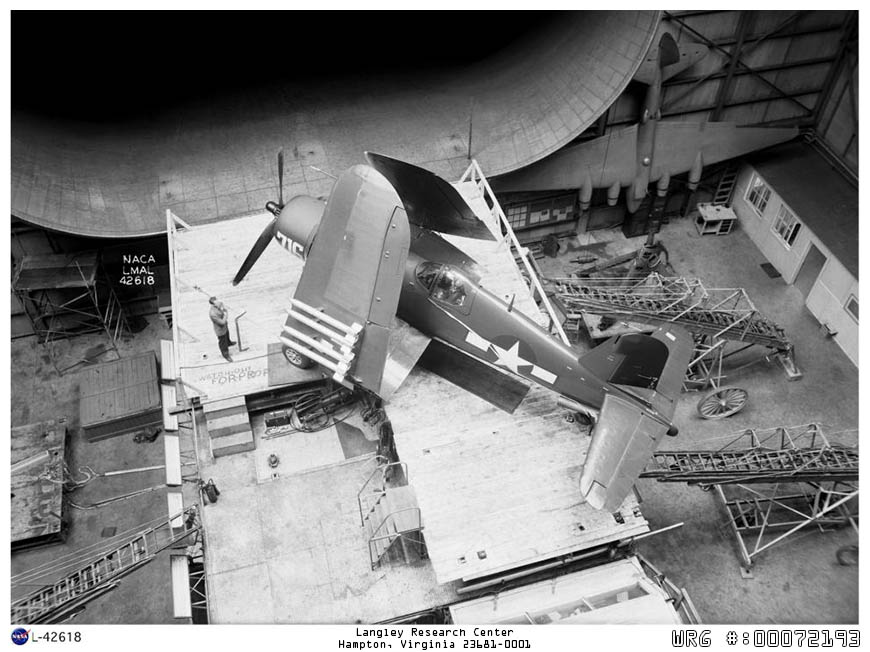

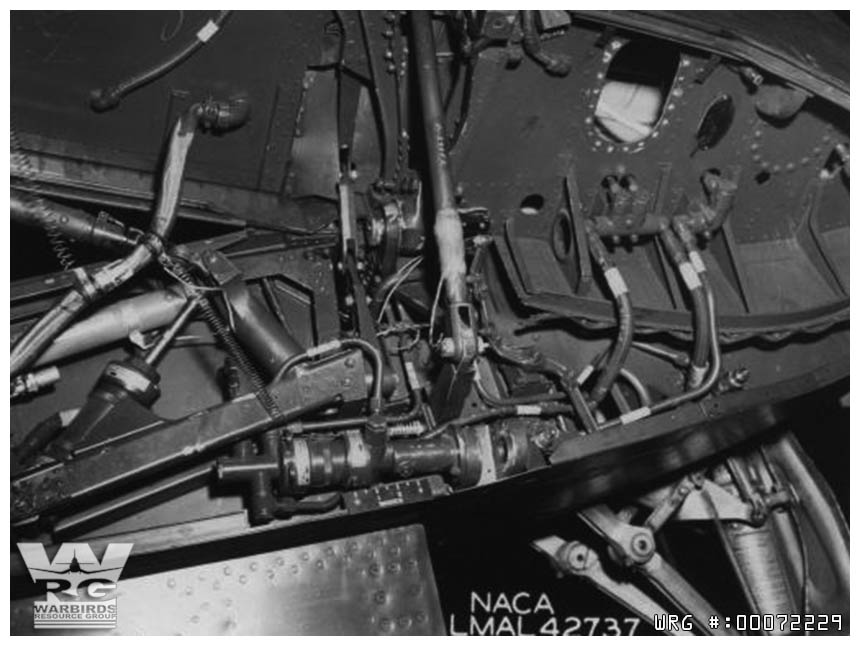

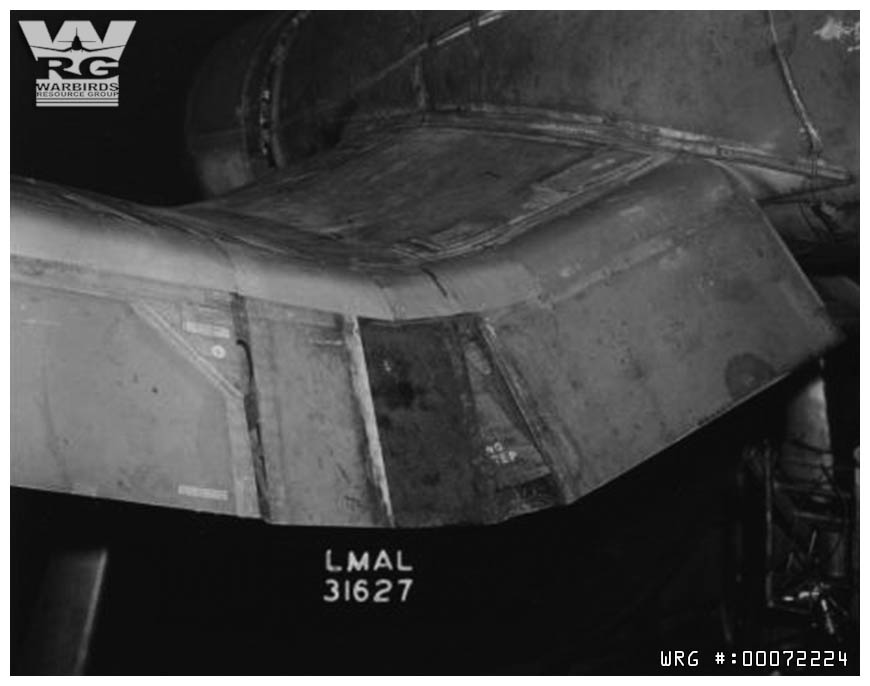

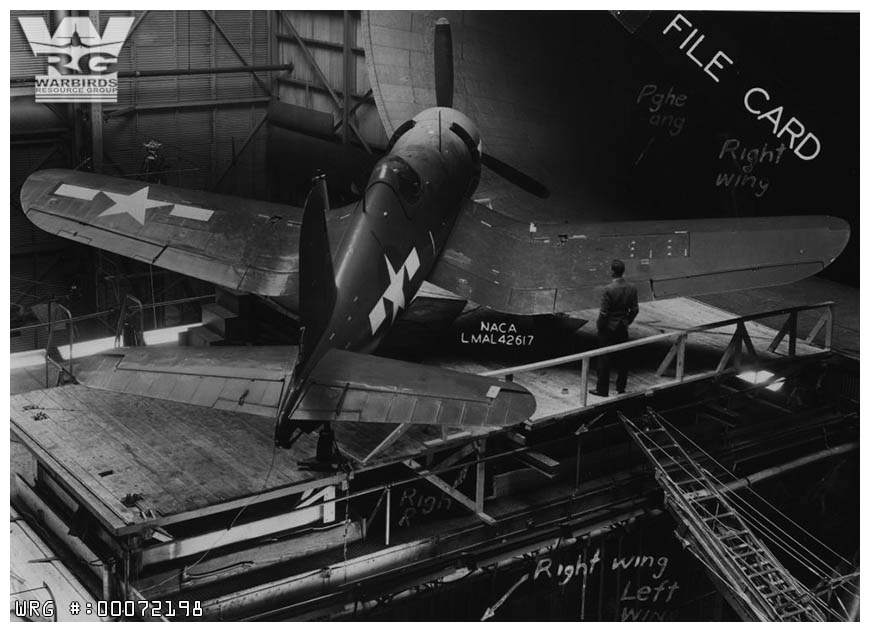

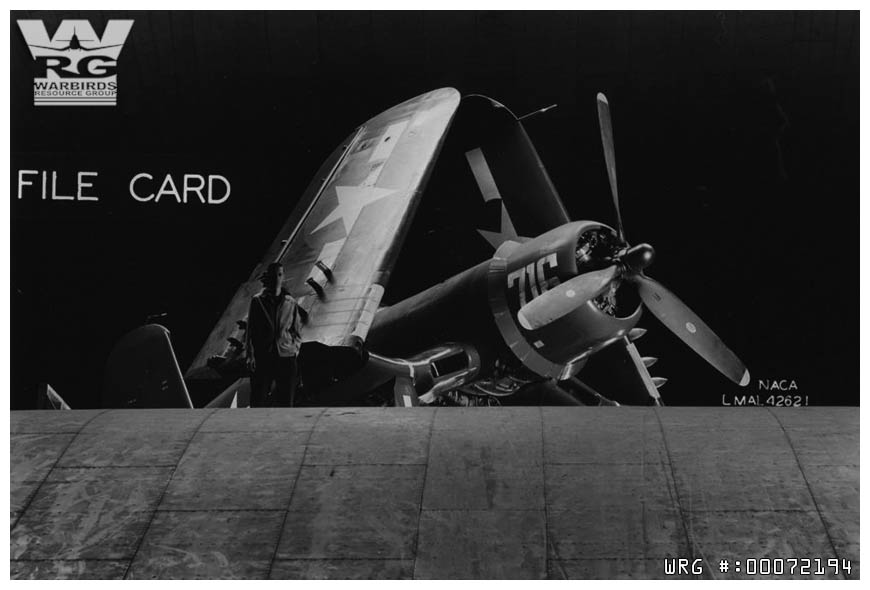

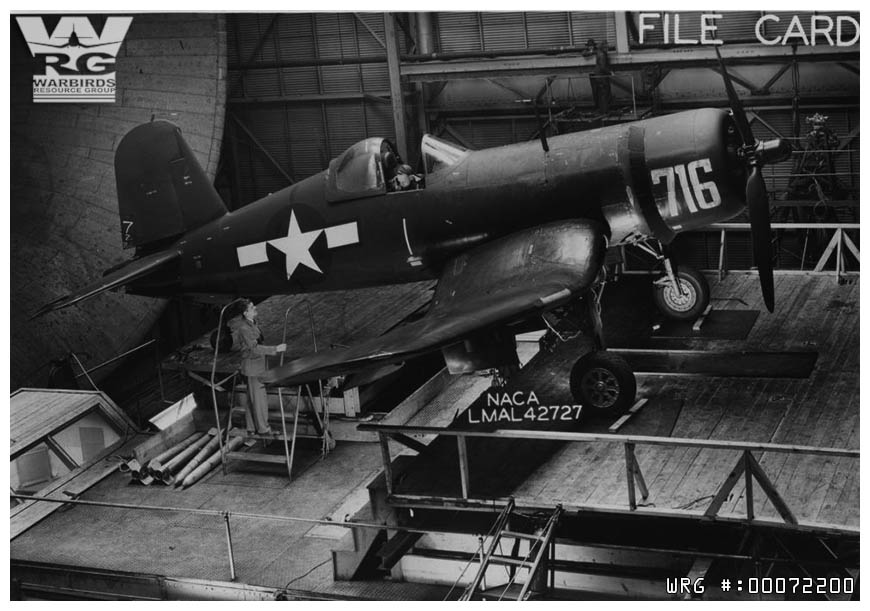

F4U-1D Wing-Fold Tests February 17, 1945

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Part 5

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Part 6

CAPFlyer · **Posted:** Fri Jan 31, 2014 10:39 am

I like them. It's interesting to see them testing modifications full-scale in the tunnel versus on scale models and how much work goes into doing it.

Doing something like that today is nearly impossible due to cost.

bdk · **Joined:** Sun May 02, 2004 1:16 am **Posts:** 11324

Tests like this allowed them to compare wind tunnel models to the full sized aircraft, thus validating that the models were sufficient by themselves to determine performance and stability. It also allowed them to validate the mathematical correction factors they were using.

sdennison · **Posted:** Fri Jan 31, 2014 1:48 pm

Awesome stuff!

Mark Allen M · **Joined:** Fri Feb 03, 2012 1:48 pm **Posts:** 7821

sdennison wrote:

Awesome stuff!

Thx, there's a lot more wind tunnel test "Awesome-ness" to post of just about every type of WW2 airplane. Some really amazing detail. I'll post some P-38, P-40 and P-47 photos after the main page clears of my other threads. Gettings a bit busy even for me :wink:

Don't want to burn you guys out now ....

DH82EH · **Posted:** Fri Jan 31, 2014 2:49 pm

Leave 'em wanting more, Eh Mark?

Well..........

We want more!!

Some really great stuff. I agree with CAPflyer, that this could not be done nowadays.

Thanks man!

Andy

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Mark Allen wrote:

No one's yelled "Uncle" yet ... so might as well keep going.

One of the main goals of posting photo threads is that perhaps there's something of value to someone or someone who enjoys old airplanes will learn something new he/she didn't know before. Like me.

The Inspector · **Posted:** Fri Jan 31, 2014 4:27 pm

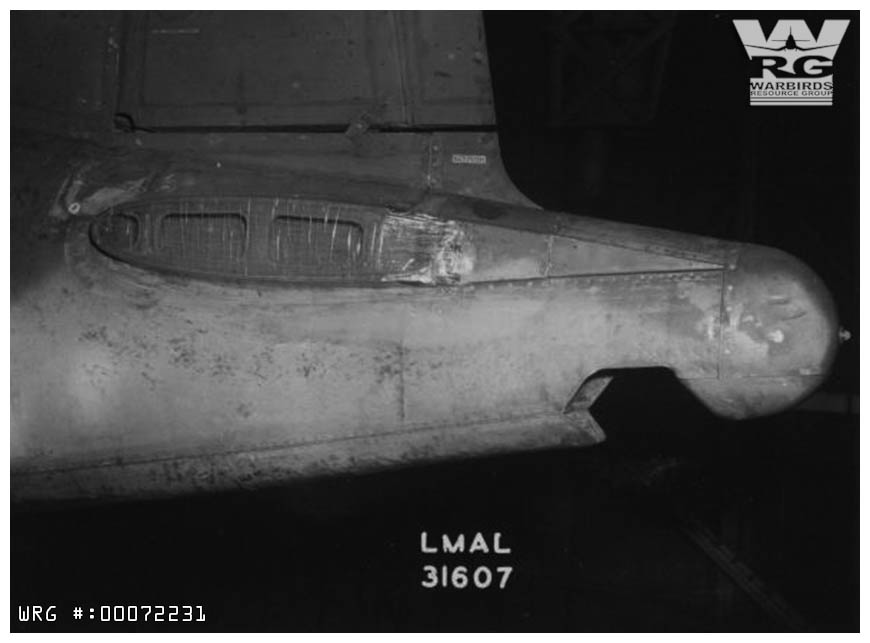

I'm puzzled as to why the entire airplane is wrapped up like a birthday present with every seam taped or faired yet the 5 gallon bucket of a tailwheel opening is left wide open geek

CAPFlyer · **Posted:** Fri Jan 31, 2014 4:41 pm

I think they were testing "quick fixes" to reduce drag on the airframe. Also, that's not the tailwheel opening. That's the tailhook opening and I don't think enclosing that is a "quick fix".

WIX_Archive · **Joined:** Wed Jul 11, 2018 12:32 pm **Posts:** 198

Perhaps the Langley Research Center kept their F4U-1D from the photos I posted in this thread? I'll have to check the BuNo. Kind of cool if this is the case.
