Yagen's 109 getting closer to flght!....well.....a converted Buchon

In german only..... http://www.meiermotors.com/index.php/projekte/messerschmitt-bf109/messerschmitt-bf109-g-fighterfactory?showall=&start=1

And the 2 seater project comming along also!!!!!

Amazing how much aluminium can be recreated/recycled!!!!! This cat has had more than 9 lives.......

http://www.meiermotors.com/index.php/projekte/messerschmitt-bf109/messerschmitt-bf109-g-12?showall=&start=1

The engine seen in this pic is NOT an airworthy one, but a dummy, used for fitting hoses, oil and fuel lines, accesories etc. The airworthy one (done by Mike Nixon) is / was on its way to Germany when the last update was made on October 19. Maybe the maiden flight will happen this year though, depending on weather I´d guess.

Michael

Where do they find these engines that still run?

Is the two-seater Yagen's as well?

Wasn't there a Spanish Civil War 109 being restored somewhere?


Chappie

_________________
Brrring. Dispersal? TWO SECTIONS SCRAMBLE!!

The two-seater build is owned by the Air Fighter Academy (Germany), which also has a Bf-109G-6 under restoration to airworthy at MeierMotors.

MeierMotors is also the one restoring the Spanish Civil War vet Bf-109E, which is owned by Robs Lamplough (England).

l[/quote]
Where do they find these engines that still run?[/quote]

With enough cubic dollars, anything is possiable

_________________
Matt Gunsch, A&P, IA, Warbird maint and restorations
Jack, You have Debauched my sloth !!!!!!
We tried voting with the Ballot box, When do we start voting from the Ammo box, and am I allowed only one vote ?
Check out the Ercoupe Discussion Group on facebook

It will be interesting to see how the 2-place is utilised. If the P.I.C. will always be in the front, then I would go with the original style back canopy. If there will be times where the instructor/PIC is having to fly (takeoffs/landings) from the rear then I would suggest making a "field modification" with a canopy that slides aft instead of opens up and to the left like the front cockpit. Based on my experience instructing in antiques and homebuilts, I can tell you it will greatly aid the instructors forward vision if he can slide the canopy back a few inches.

Lynn

Marine air: Cockpit will be 100 % original G-12 style, both fromt and rear seat canopy opening to the right, no sliding canopy. Different to single seater 109 canopies the 2- seater ones are not hinged at the lower right side, but on the upper right side (I´d guess for stability reasons). You can see the cockpit construction on MeierMotors homepage, click the link and scroll down a bit.

http://www.meiermotors.com/index.php/pr ... l=&start=1

Personally if it were my plane, I would have gone for the late Avia CS-199 style canopy, but who am I?

http://www.modelarovo.cz/avia-s-199-a-c ... ast-prvni/

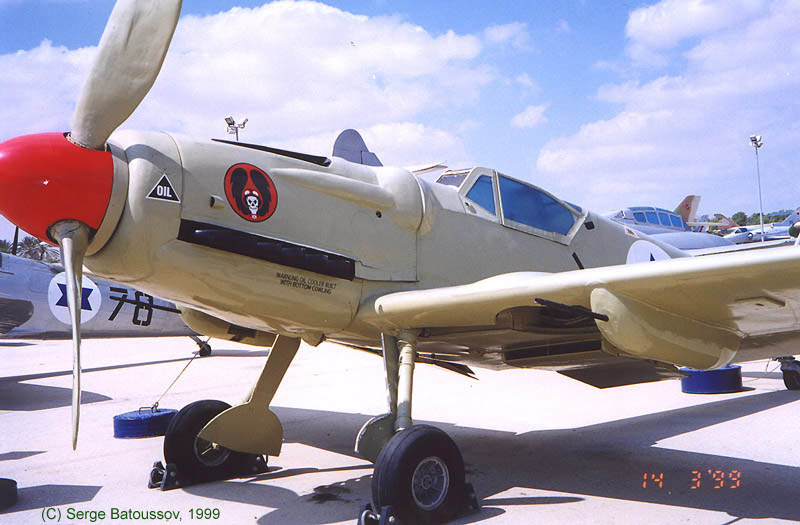

There are pics of the single seater S-199 and 2-seater CS-199 Avia, Prague-Kbely museum, in fact a 109 with different engine (Jumo 211),and some modificationss, interestingly the (late) S-199 has a blown sliding canopy (I´d asume they used up the stocks of original canopies, when there weren´t any left, they used the ones seen). Both a/c are of the late versions, early Avias were Bf-109 G-10 or G-14 without mods. Main difference was that the 199´s used Jumo´s (most DB 605´s were lost due to fire in the storage facility), the S and CS-99 used DB 605.

Michael

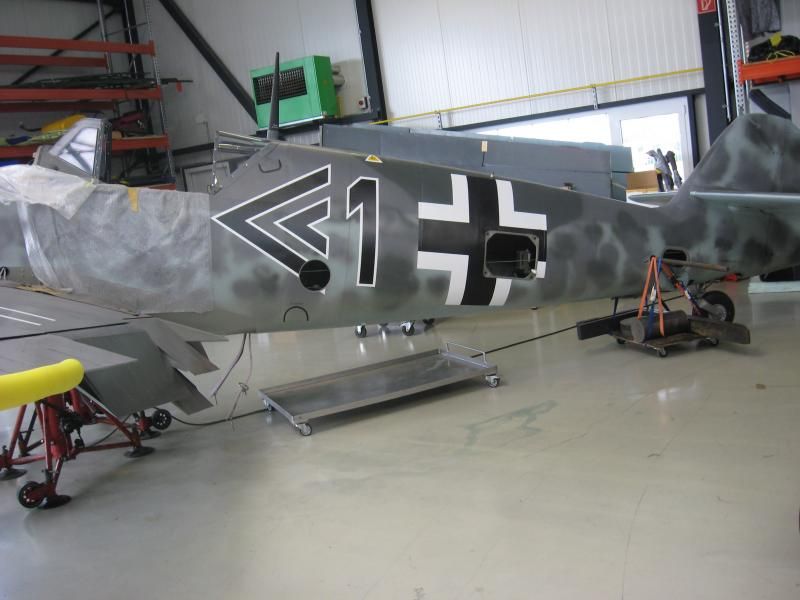

Yagens 109 (my pics):

That's a great looking restoration. Speaking of Buchons, I cringe when I see them in "The Battle of Britain". -Joe

_________________
"According to the map, we've only gone 4 inches."

Nice page onthe two seat conversion. Nice! I also like how the Avia has a drop tank to help add range since the fuselage tank is removed for the second cockpit. I think this would be a welcome addition. I would also consider oxygen, cockpit heat, and relief tubes re-installed as the fewer landings made away from home base the smaller chance of tearing the aircraft up.

I like the way Avia modified the angle of the wheel shaft angle on the landing gear to improve ground stability.....hence the bulge on the top of the wing for the wheel when in retract position.

BTW....whatever happened to Mathias and his reports on MeiersMotor????? Miss those!!!!

Most G-12´s usually had a 300 liter droptank as well (G-12 R3), though were flown with and without. I doubt it will be possible to use a droptank on this one, AFAIK droptanks are only allowed for military a/c in Germany. A fixed one might be possible, but quite dangerous in case of a bellylanding.


@ Michel Lemieux: Matthias has a lot to do beside his normal daytime job, maintaining / creating several websites and updating them. So he decided to skip those reports on MeierMotors here and on Keypublishings Historic Aviation Forum. Best to follow what´s going on at MeierMotors is 1. visiting their newmade homepage, German language only,(updated quite regularly, though not everything from the old one has moved there yet) 2. follow their Facebook site, updated more often, mostly in English. 1. link MM homepage, 2. one FB site.

http://www.meiermotors.com/

https://www.facebook.com/pages/MeierMot ... 9400376090

Michael

Today I found this video of the test run of DB 605 for Jerry Yagen´s 109. Uploaded by MeierMotors / Matthias Dorst, shot by Vintage V12. Enjoy!

https://www.youtube.com/watch?v=Q-vaMqz ... e=youtu.be

Michael
