Well this is something different... and new to me.

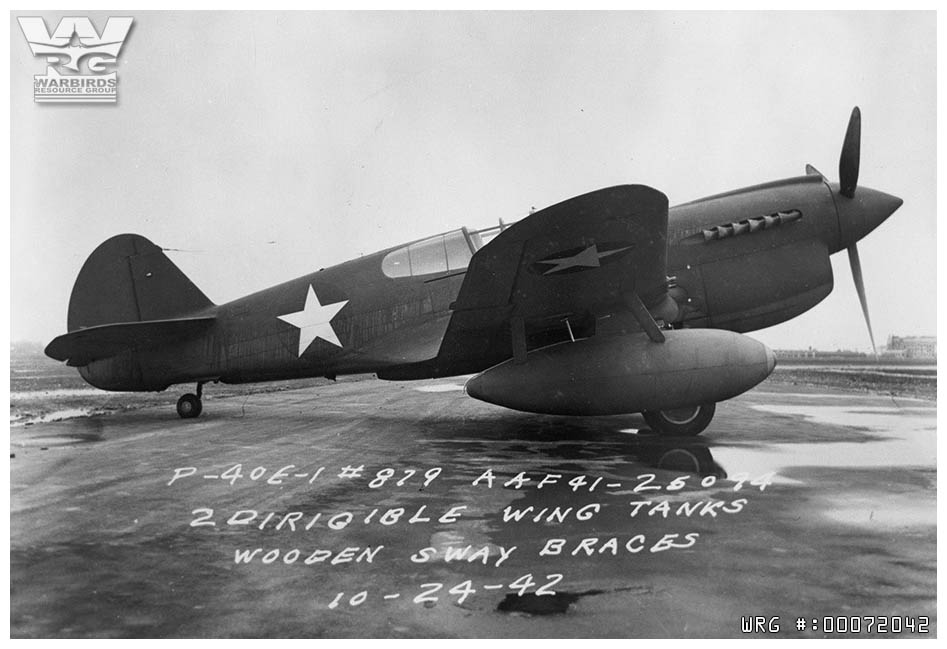

P-40E-1 Warhawk/41-25074/879 fitted with 2 dirigible wing tanks with wooden sway braces, October 24, 1942.
[Source: Keith Walker Collection via WIX/FB]

_________________
Scott Rose
Editor-In-Chief/Webmaster
Warbirds Resource Group - Warbird Information Exchange - Warbird Registry

Be civil, be polite, be nice.... or be elsewhere.
-------------------------------------------------------
This site is brought to you with the support of members like you. If you find this site to be of value to you,
consider supporting this forum and the Warbirds Resource Group with a VOLUNTARY subscription
For as little as $2/month you can help ($2 x 12 = $24/year, less than most magazine subscriptions)
So If you like it here, and want to see it grow, consider helping out.



Thanks to everyone who has so generously supported the site. We really do appreciate it.

Follow us on Twitter! @WIXHQ

Helium filled for extra lift.

Look at the installation angle - were they assuming that the plane would have to fly at a high angle of attack to compensate for the extra weight?

Richard

_________________
I am but mad north-north-west: when the wind is southerly I know a hawk from a handsaw.

Almost certainly. Max range cruise with that much external drag and weight is gonna be relatively slow, meaning a fairly high AOA.

Or, perhaps there was a CG issue as the tanks were emptied? Just a thought. Randy

Spitfire


P-51 American Beauty


P-51C


P-51C


Drop Tank Is Attached To The Belly Of A Republic P-47 At 11Th Combat Crew Replacement Center, England. 8 July 1943

_________________
Zero Surprise!!...

I would hazard a guess at a ground clearance issue during TO and landing.

_________________
A Little VC10derness - A Tribute to the Vickers VC10 - www.VC10.net

Is this how P-47s reached the vicinity of Berlin?

_________________
Kevin McCartney
